Product Details

Description



Features:

• 15A and 20A, 400V and 500V
• VCE(ON) 2.5V
• TFI 1ms, 0.5ms
• Low On-State Voltage
• Fast Switching Speeds
• High Input Impedance
• No Anti-Parallel Diode


Application

• Power Supplies
• Motor Drives
• Protection Circuits


Pinout

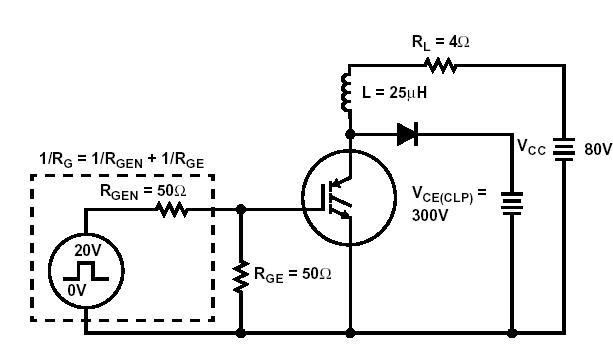

Connection Diagram


Specifications

Collector-Emitter Voltage. . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  . .    VCES 400  500  400  500 V
Collector-Gate Voltage RGE = 1MW. . . . . . . . . . . . . . . . .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .   . VCGR 400 500 400 500 V
Reverse Collector-Emitter Voltage . . . . . . . . . . . .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  . VCES(rev.) -5 -5 -5 -5 V
Gate-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  VGE ±20 ±20 ±20 ±20 V
Collector Current Continuous . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  IC 20 20 15 15 A
Collector Current Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  . ICM 35 35 35 35 A
Power Dissipation at TC = +25 . . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  . PD 100 100 75 75 W
Power Dissipation Derating TC > +25 . . . . . . . . . . . . . . . . . .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  .  . 0.8 0.8 0.6 0.6 W/
Operating and Storage Junction Temperature Range . .  TJ, TSTG -55 to +150  -55 to +150  -55 to +150  -55 to +150


Description

The HGTH20N40C1, HGTH20N40E1, HGTH20N50C1, HGTH20N50E1, HGTP15N40C1, HGTP15N40E1, HGTP15N50C1 and HGTP15N50E1 are n-channel enhancement-mode insulated gate bipolar transistors (IGBTs) designed for high-voltage, low on-dissipation applications such as switching regulators and motor drivers. These HGTH20N40C1, HGTH20N40E1, HGTH20N50C1, HGTH20N50E1, HGTP15N40C1, HGTP15N40E1, HGTP15N50C1 and HGTP15N50E1  can be operated directly from low-power integrated circuits.
