HGTP12N60A4

IGBT Transistors 600V N-Channel IGBT SMPS Series

product image

HGTP12N60A4 Picture
SeekIC No. : 00143874 Detail

HGTP12N60A4: IGBT Transistors 600V N-Channel IGBT SMPS Series

floor Price/Ceiling Price

Part Number:
HGTP12N60A4
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/30

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Collector- Emitter Voltage VCEO Max : 600 V
Collector-Emitter Saturation Voltage : 2 V Maximum Gate Emitter Voltage : +/- 20 V
Continuous Collector Current at 25 C : 54 A Gate-Emitter Leakage Current : +/- 250 nA
Power Dissipation : 167 W Maximum Operating Temperature : + 150 C
Package / Case : TO-220-3 Packaging : Tube

Description

Collector- Emitter Voltage VCEO Max : 600 V
Maximum Operating Temperature : + 150 C
Packaging : Tube
Configuration : Single
Maximum Gate Emitter Voltage : +/- 20 V
Collector-Emitter Saturation Voltage : 2 V
Package / Case : TO-220-3
Power Dissipation : 167 W
Gate-Emitter Leakage Current : +/- 250 nA
Continuous Collector Current at 25 C : 54 A


Features:

• >100kHz Operation at 390V, 12A
• 200kHz Operation at 390V, 9A
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . . 70ns at TJ = 125
• Low Conduction Loss
• Related Literature
- TB334 "Guidelines for Soldering Surface Mount Components to PC Boards



Pinout

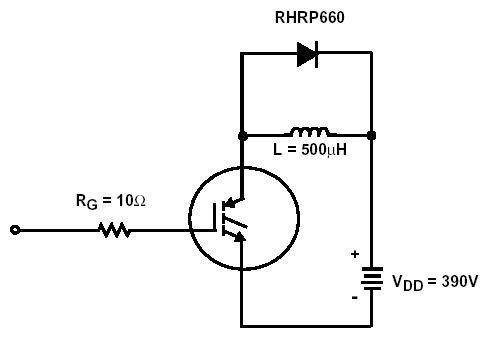

  Connection Diagram


Specifications

Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BVCES 600 V
Collector Current Continuous At TC = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IC25 54 A
Collector Current Continuous At TC = 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C110 23 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ICM 96 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGEM ±30 V
Switching Safe Operating Area at TJ = 150, Figure 2 . . . . . . . . . . . . . . SSOA 60A at 600V
Power Dissipation Total at TC = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PD 167 W
Power Dissipation Derating TC > 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.33 W/
Operating and Storage Junction Temperature Range . . . . . . . . . . . . .TJ, TSTG -55 to 150
Maximum Lead Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . TL 300
Package Body for 10s, See Tech Brief 334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TPKG 260



Description

The HGTP12N60A4, HGTG12N60A4 and HGT1S12N60A4S9A are MOS gated high voltage switching devices combining the best features of MOSFETs and bipolar transistors. These HGTP12N60A4, HGTG12N60A4 and HGT1S12N60A4S9A have the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25 and 150.

This HGTP12N60A4, HGTG12N60A4 and HGT1S12N60A4S9A IGBT is ideal for many high voltage switching applications operating at high frequencies where low conduction losses are essential. This device has been optimized for high frequency switch mode power supplies.Formerly Developmental Type TA49335.




Parameters:

Technical/Catalog InformationHGTP12N60A4
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Input TypeStandard
Voltage - Collector Emitter Breakdown (Max)600V
Current - Collector (Ic) (Max)54A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 12A
Power - Max167W
Mounting TypeThrough Hole
Package / CaseTO-220AB
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names HGTP12N60A4
HGTP12N60A4
