HG3-AC12V: RELAY GEN PURPOSE 3PDT 20A 12V

HG3-AC12V Data Sheet

Get Latest Price

Part Number:: HG3-AC12V
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

HG3-AC100V-F evaluate
US $20.97 - 30.18 / Piece

General Purpose / Industrial Relays HG Relay RoHS
HG3-AC115V evaluate
General Purpose / Industrial Relays 3 Form C 115VAC H Capacity Pwr Relay

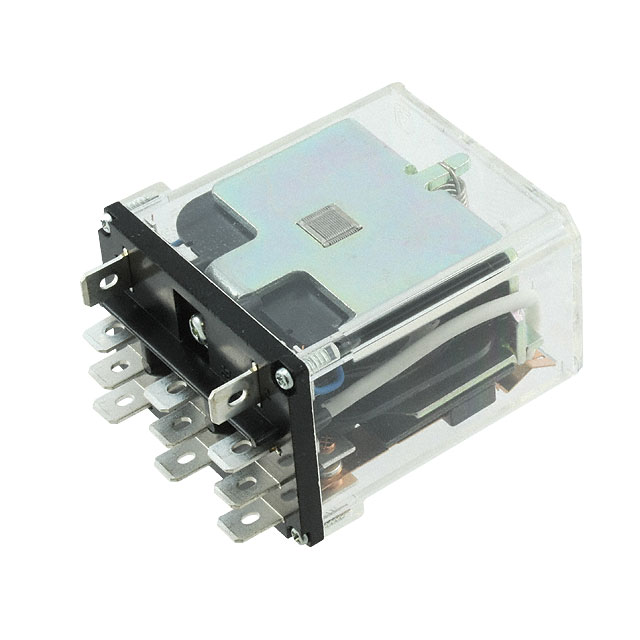

HG3-AC115V-F evaluate
US $20.97 - 30.18 / Piece

General Purpose / Industrial Relays 20A 115VAC RELAY POWER CUBE

Product Details

Quick Details

Series:	HG	Manufacturer:	Panasonic Electric Works
Relay Type:	General Purpose	Coil Type:	Non Latching
Coil Current:	432mA	Coil Voltage:	12VAC
Contact Form:	3PDT (3 Form C)	Contact Rating (Current):	20A
Switching Voltage:	250VAC - Nom	Package / Case :	TQFN-56
Turn On Voltage (Max):	9.6 VAC	Turn Off Voltage (Min):	3.6 VAC
Features:	-	Mounting Type:	Socketable
Termination Style:	Plug In, QC - 0.250" (6.3mm)

Description

Relay Type: General Purpose
Coil Type: Non Latching
Packaging: Bulk
Features: -
Turn Off Voltage (Min): 3.6 VAC
Mounting Type: Socketable
Termination Style: Plug In, QC - 0.250" (6.3mm)
Contact Rating (Current): 20A
Contact Form: 3PDT (3 Form C)
Coil Voltage: 12VAC
Turn On Voltage (Max): 9.6 VAC
Manufacturer: Panasonic Electric Works
Switching Voltage: 250VAC - Nom
Series: HG
Coil Current: 432mA

Parameters:

Technical/Catalog Information	HG3-AC12V
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	General Purpose
Mounting Type	Socket
Termination Style	Quick Connect - .250" (6.3mm)
Circuit	3PDT (3 Form C)
Contact Rating @ Voltage	20A @ 250VAC
Coil Voltage	12VAC
Control Off Voltage (Min)	3.6 VAC
Control On Voltage (Max)	9.6 VAC
Coil Current	432mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HG3 AC12V HG3AC12V
