HFCT-5205

• SC duplex single mode transceiver
• Intermediate SONET OC3 SDH STM1 (S1.1) compliant
• Single +5 V power supply

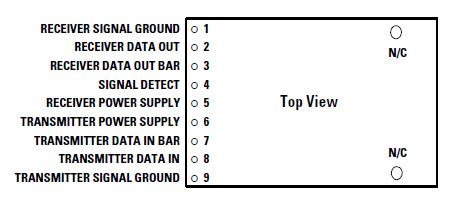

• Multisourced 1 x 9 pin configuration
• Aqueous washable plastic package
• Interchangeable with LED multisourced 1 x 9 transceivers
• Unconditionally eye safe laser IEC 825/CDRH Class 1 compliant
• Two temperature ranges:
0°C to +70°C - HFCT-5205B/D
-40°C to +85°C - HFCT-5205A/C

The HFCT-5205 transceiver is a high performance, cost effective module for serial optical data communications applications specified for a signal rate of 155 MBd. It is designed to provide a SONET/SDH compliant link for 155 Mb/s intermediate reach links.

This HFCT-5205 module is designed for single mode fiber and operates at a nominal wavelength of 1300 nm. It incorporates Agilent's high performance, reliable, long wavelength optical devices and proven circuit technology to give long life and consistent service. The transmitter section uses a Multiple Quantum Well laser with full IEC 825 and CDRH Class I eye safety.

The HFCT-5205 receiver section uses a planar PIN photodetector for low dark current and excellent responsivity.A pseudo-ECL logic interface simplifies interface to external circuitry.
