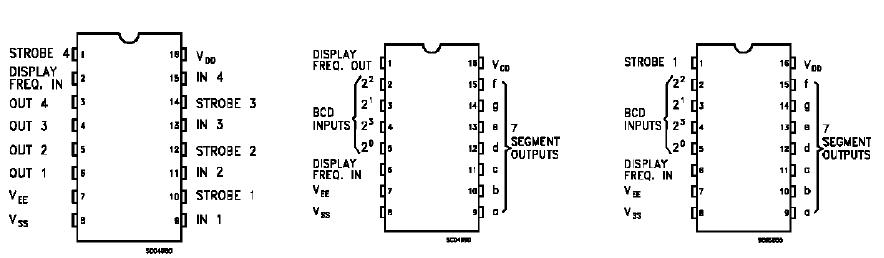

PinoutSpecifications Symbol Parameter Value Unit VDD* Supply Voltage :HCC Types HCF Types 0.5 to + 20 0.5 to + 18 VV Vi Input Voltage 0.5 to VDD + 0.5 V II DC Input Current (any one input) ± 10 mA Ptot Total Power Dissipation (per package)Dissipation per Output T...
HFC4054B: PinoutSpecifications Symbol Parameter Value Unit VDD* Supply Voltage :HCC Types HCF Types 0.5 to + 20 0.5 to + 18 VV Vi Input Voltage 0.5 to VDD + 0.5 V II DC Input Curr...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Value | Unit |
VDD* | Supply Voltage :HCC Types HCF Types |
0.5 to + 20 0.5 to + 18 |
V V |
Vi | Input Voltage | 0.5 to VDD + 0.5 | V |
II | DC Input Current (any one input) | ± 10 | mA |
Ptot | Total Power Dissipation (per package) Dissipation per Output Transistor for Top = Full Package-temperature Range |
200 100 |
mW mW |
Top | Operating Temperature : HCC Types HCF Types |
55 to + 125 40 to + 85 |
°C °C |
Tstg | Storage Temperature | 65 to + 150 | °C |
The HCC4054B, HCC4055B and HCC4056B (extended temperature range) and the HCF4054B, HCF4055B and HCF4056B (intermediate temperature range) aremonolithic integrated circuits available in 16-lead dual in-line plastic or ceramic package and plastic micro package. The HCC4054B, HCC4055B and HCC4056B types are single-digit BCD-to-7-segment decoder/driver circuits that provide level-shifting functions on the chip. This feature permits the BCD input-signal swings (VDD to VSS) to be the same asor different fromthe 7-segment output-signal swings (VDD to VEE). For example, the BCD input-signal swings (VDD to VSS) may be as low as 0 to 3V, whereas the output-display drive-signal swing (VDD to VEE)may be from 0 to 5V. If VDD toVEE exceeds 15V, VDD to VSS should be at least 4V. The 7-segment outputs are controlled by the DISPLAY-FREQUENCY (DF) input which causes the selected segment outputs to be low, high, or a square-wave output (for liquid-crystal displays). When the DF input is low the output segments will be high when selected by the BCD inputs. When the DF input is high, the output segments will be low when selected by the BCD inputs. When a square-wave is present at the DF input, the selected segments will have a square-wave output that is 180° out of phase with the DF input. Those segments which are not selected will have a square-wave output that is in phase with the input. DF square-wave repetition rates for liquid-crystal displays usually range from 30Hz (well above flicker rate) to 200Hz (well below the upper limit of the liquid-crystal frequency response). The HCC/HCF4055B provides a levelshifted high-amplitude DF output which is required for driving the common electrode in liquid-crystal displays. The HCC/HCF4056B provides a strobedlatch function at the BCD inputs. Decoding of all input combinations on the HCC4054B, HCC4055B and HCC4056B provides displays of 0 to 9 as well
