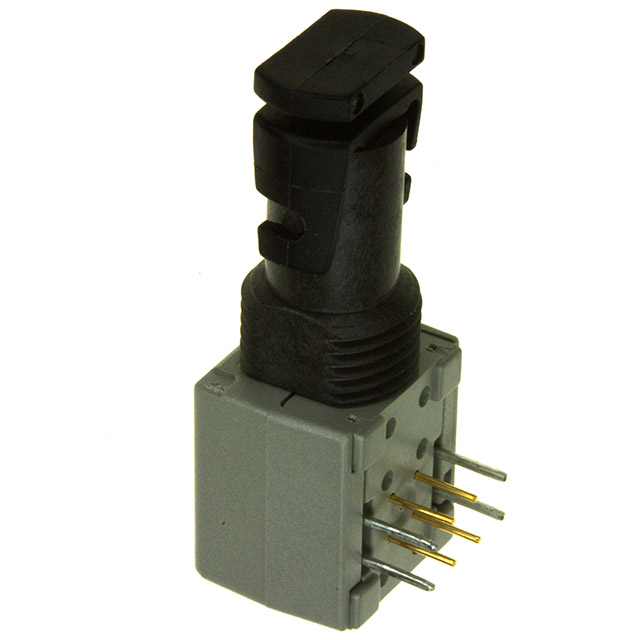

HFBR-2412TZ

• High Electromagnetic Interference (EMI) Immunity

The HFBR-2412TZ is designed as one kind of low cost, miniature fiber optic component that can be used in (1)100 base-SX fast ethernet on 850 nm; (2)media/fiber conversion, switches, routers, hubs and NICs on 100 base-SX; (3)local area networks; (4)computer to peripheral links; (5)computer monitor links; (6)digital cross connect links; (7)central office switch/PBX links; (8)video links; (9)modems and multiplexers; (10)suitable for tempest systems; (11)industrial control links.

Features of the HFBR-2412TZ are:(1)meets IEEE 802.3 ethernet and 802.5 token ring standards; (2)meets TIA/EIA-785 100 Base-SX standard; (3)low cost transmitters and receivers; (4)choice of ST SMA, SC or FC ports; (5)820 nm wavelength technology; (6)signal rates up to 160 MBd; (7)link distances up to 2.7 km; (8)specified with 50/125 m, 62.5/125 m, 100/140 m, and 200 m HCS-fiber; (9)repeatable ST connections within 0.2 dB typical; (10)unique optical port design for efficient coupling; (11)auto-insertable and wave solderable; (12)no board mounting hardware required; (13)wide operating temperature range -40 to +85 ; (14)AlGaAs emitters 100% burn-in ensures high reliability; (15)conductive port option.

The absolute maximum ratings of the HFBR-2412TZ can be summarized as:(1)Storage Temperature: -55 to +85 °C;(2)Operating Temperature: -40 to +85 °C;(3)Supply Voltage: -0.5 to 7.0 V;(4)Output Current: 25 mA;(5)Output Voltage: -0.5 to 18.0 V;(6)Output Collector Power Dissipation: 40 mW;(7)Fan Out (TTL): 5.

The electrical characteristics of HFBR-2412TZ can be summarized as:(1)Equivalent Diameter: 324 m;(2)Equivalent NA: 0.35;(3)Power Supply Current: 9 to 15 mA;(4)dc Output Voltage: -4.2 to -2.4 V;(5)Output Impedance: 30 ;(6)Bandwidth - Rise Time Product: 0.41 Hz • s;(7)Bandwidth (Electrical): 125 MHz;(8)Overshoot: 2 %;(9)Pulse Width Distortion: 0.4 to 2.5 ns;(10)Rise/Fall Time 10% to 90%: 3.3 to 6.3 ns. If you want to know more information about it, please download the datasheet in www.seekic.com or www.chinaicmart.com .
