HFBR-1312T

Fiber Optic Transmitters, Receivers, Transceivers 1300nm Fiber Optic S T Tx

product image

HFBR-1312T Picture
See larger image
SeekIC No. : 0018549 Detail

HFBR-1312T: Fiber Optic Transmitters, Receivers, Transceivers 1300nm Fiber Optic S T Tx

HFBR-1312T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HFBR-1312T
Mfg:
Avago Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Transmitters Data Rate : 32 MBd
Wavelength : 1300 nm Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C Package / Case : PDIP-8
Packaging : Tube

Description

Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Packaging : Tube
Product : Transmitters
Wavelength : 1300 nm
Package / Case : PDIP-8
Data Rate : 32 MBd


Features:

• Low Cost Fiber Optic Link
• Signal Rates over 155 Megabaud
• 1300 nm Wavelength
• Link Distances over 5 km
• Dual-in-line Package Panel- Mountable ST* and SC Connector Receptacles
• Auto-Insertable and Wave-Solderable
• Specified with 62.5/125 mm and 50/125 mm Fiber
• Compatible with HFBR-0400 Series
• Receiver also Specified for SM Cable Spec (9/125 mm)




Application

• Desktop Links for High Speed LANs
• Distance Extension Links
• Telecom Switch Systems
• TAXlchip® Compatible




Pinout

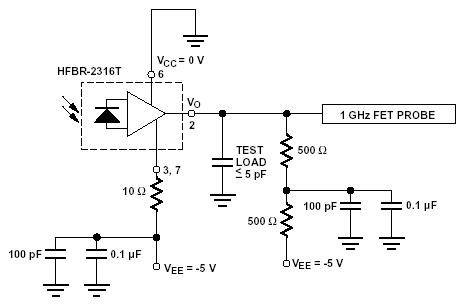

Connection Diagram




Specifications

Parameter Symbol Min Max Unit Notes
Storage Temperature TS -55 85 °C
Operating Temperature TA -40 85 °C
Lead Soldering Cycle Temperature 260 °C Note 8
Lead Soldering Cycle Time 10 sec
Forward Input Current DC IFDC 100 mA
Reverse Input Voltage VR 1 V





Description

The HFBR-0300 Series is designed to provide the most cost-effective 1300 nm fiber optic links for a wide variety of data communication applications from low-speed distance extenders up to SONET OC-3 signal rates. Pinouts identical to Avago Technologies HFBR-0300 Series allow designers to easily upgrade their 820 nm links for farther distance. The transmitter and receiver are compatible with two popular optical fiber sizes: 50/125 5m and 62.5/125 5m diameter. This allows flexibility in choosing a fiber size. The 1300 nm wavelength is in the lower dispersion and attenuation region of fiber, and provides longer distance capabilities than 820 nm LED technology. Typical distance capabilities are 2 km at 125 MBd and 5 km at 32 MBd.
