HFA3861A

Features: • Complete DSSS Baseband Processor• Processing Gain. . . . . . . . . . . . . . . . . . . . .FCC Compliant• Programmable Data Rate . . . . . . . 1, 2, 5.5, and 11Mbps• Ultra Small Package. . . . . . . . . . . . . . . . . . . . . 10 x 10mm• Single Supply Opera...

product image

HFA3861A Picture
See larger image
SeekIC No. : 004361776 Detail

HFA3861A: Features: • Complete DSSS Baseband Processor• Processing Gain. . . . . . . . . . . . . . . . . . . . .FCC Compliant• Programmable Data Rate . . . . . . . 1, 2, 5.5, and 11Mbps̶...

HFA3861A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HFA3861A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Complete DSSS Baseband Processor
• Processing Gain. . . . . . . . . . . . . . . . . . . . .FCC Compliant
• Programmable Data Rate . . . . . . . 1, 2, 5.5, and 11Mbps
• Ultra Small Package. . . . . . . . . . . . . . . . . . . . . 10 x 10mm
• Single Supply Operation (44MHz Max) . . . . . 2.7V to 3.6V
• Modulation Methods. . . . . . . . DBPSK, DQPSK, and CCK
• Supports Full or Half Duplex Operations
• On-Chip A/D and D/A Converters for I/Q Data (6-Bit,22MSPS), AGC, and Adaptive Power Control (7-Bit)
• Targeted for Multipath Delay Spreads ~50ns
• Supports Short Preamble Acquisition
• Supports Antenna Diversity


Application

• Enterprise WLAN Systems
• Systems Targeting IEEE 802.11 Standard
• DSSS PCMCIA Wireless Transceiver
• Spread Spectrum WLAN RF Modems
• TDMA Packet Protocol Radios
• Part 15 Compliant Radio Links
• Portable PDA/Notebook Computer
• Wireless Digital Audio, Video, Multimedia
• PCN/Wireless PBX
• Wireless Bridges
• Antenna Diversity Supported


Pinout

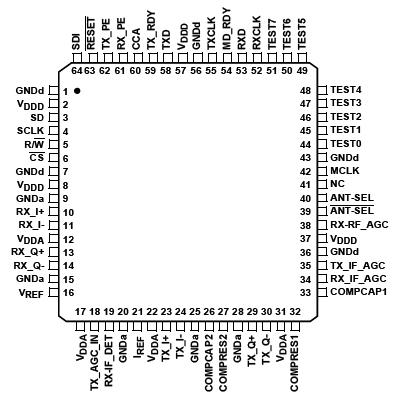

Connection Diagram


Specifications

Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.0V
Input, Output or I/O Voltage. . . . . . . . . . . .GND -0.5V to VCC +0.5V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class 2


Description

  The Intersil HFA3861A Direct Sequence Spread Spectrum (DSSS) baseband processor is part of the PRISM® 2.4GHz radio chipset, and contains all the functions necessary for a full or half duplex packet baseband transceiver.The HFA3861A has on-board A/D's for analog I and Q inputs and outputs, for which the HFA3783 IF QMODEM is recommended.

  Differential phase shift keying modulation schemes DBPSK and DQPSK, with data scrambling capability, are available along with Complementary Code Keying to provide a variety of data rates. Built-in flexibility allows the HFA3861A to be configured through a general purpose control bus, for a range of applications. Both Receive and Transmit AGC functions with 7-bit AGC control obtain maximum performance in the analog portions of the transceiver. The HFA3861A is housed in a thin plastic quad flat package (TQFP) suitable for PCMCIA board applications.
