HFA3860A

Features: • Complete DSSS Baseband Processor• Processing Gain . . . . . . . . . . . . . . . . . . . . . . . . . . ³10.4dB• Programmable Data Rate. . . ... . . . .1, 2, 5.5, and 11MBPS• Ultra Small Package . . . . . . . . . . . . . . . . . . . . 7 x 7 x 1mm• Singl...

product image

HFA3860A Picture
See larger image
SeekIC No. : 004361773 Detail

HFA3860A: Features: • Complete DSSS Baseband Processor• Processing Gain . . . . . . . . . . . . . . . . . . . . . . . . . . ³10.4dB• Programmable Data Rate. . . ... . . . .1, 2, 5.5, an...

HFA3860A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HFA3860A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Complete DSSS Baseband Processor
• Processing Gain . . . . . . . . . . . . . . . . . . . . . . . . . . ³10.4dB
• Programmable Data Rate. . . ... . . . .1, 2, 5.5, and 11MBPS
• Ultra Small Package . . . . . . . . . . . . . . . . . . . . 7 x 7 x 1mm
• Single Supply Operation (44MHz Max) . ... . . . 2.7V to 3.6V
• Modulation Methods . . . . ..... . .DBPSK, DQPSK, and MBOK
• Supports Full or Half Duplex Operations
• On-Chip A/D Converters for I/Q Data (3-Bit, 22MSPS) and
   RSSI (6-Bit)
• Backwards Compatible with HFA3860
• Supports Antenna Diversity


Application

• Enterprise WLAN Systems
• Systems Targeting Ethernet Data Rates
• DSSS PCMCIA Wireless Transceiver
• Spread Spectrum WLAN RF Modems
• TDMA Packet Protocol Radios
• Part 15 Compliant Radio Links
• Portable Bar Code Scanners/POS Terminal
• Portable PDA/Notebook Computer
• Wireless Digital Audio
• Wireless Digital Video
• PCN/Wireless PBX

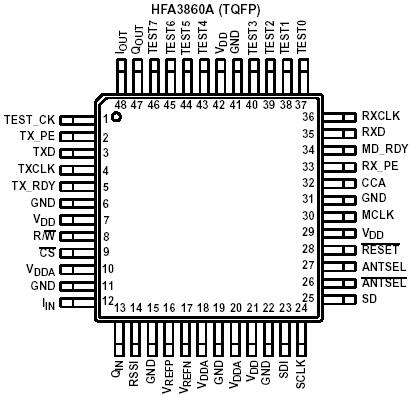

Pinout

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0V
Input, Output or I/O Voltage . . . . . . . . . . . .GND -0.5V to VCC +0.5V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 2
