HFA3766

Features:

• Integrates all IF Transmit and AGC Receive Functions
• Broad Frequency Range . . . . . . . . . . 10MHz to 400MHz
• I/Q Amplitude and Phase Balance . . . . 0.2dB, 2 Degrees
• 5th Order Programmable
Low Pass Filter . . . . . . . . . . . . . . . . . . 2.2MHz to 17.6MHz
• 400MHz AGC Gain Strip . . . . . . . . . . . . . . . . . . . . . 82dB
• AGC Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75dB
• Low LO Drive Level . . . . . . . . . . . . . . . . . . . . . . . -15dBm
• Fast AGC Switching . . . . . . . . . . . . . . . . . . . . . . . . . . 1ms
• Fast Transmit-Receive Switching . . . . . . . . . . . . . . . . . . . 1ms
• Power Management/Standby Mode
• Single Supply 3.0V Operation
• Wireless Local Loop
• Wireless Local Area Networks
• PCMCIA Wireless Transceivers
• ISM Systems
• CDMA Radios
• PCS/Wireless PBX

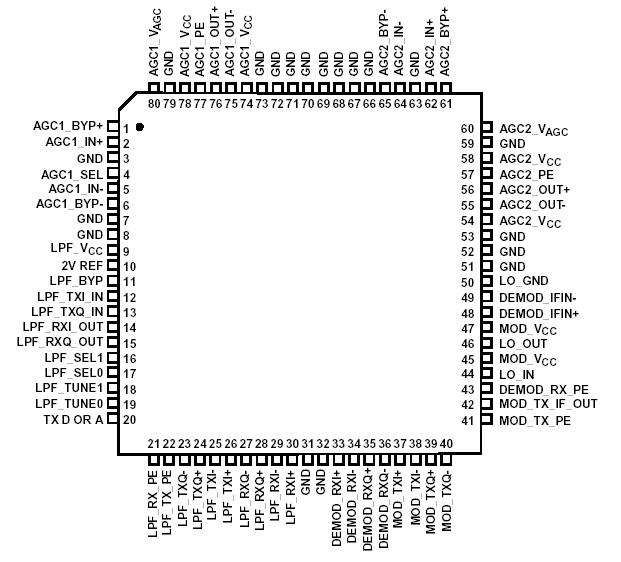

Pinout




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +6.0V
Voltage on Any Other Pin. . . . . . . . . . . . . . . . . . -0.3V to V_CC +0.3V


Description

The HFA3766 is a highly integrated baseband converter for quadrature modulation applications. It features all the necessary blocks for baseband modulation and demodulation of I and Q signals. It has a two stage integrated AGC IF amplifier with 82dB of voltage gain and 76dB of gain control range.

Baseband antialiasing is integrated into the design. Four filter bandwidths are programmable via a two bit digital control interface. In addition, these filters are continuously tunable over a ±20% frequency range via one external resistor. For baseband modulation digital I and Q data are delivered to the transmit section. To achieve broadband operation, the Local Oscillator frequency input is required to be twice the desired frequency of modulation and demodulation. A selectable buffered divide by 2 LO output and a stable reference voltage are provided for convenience of the user. The HFA3766 is housed in a thin 80 lead TQFP package well suited for PCMCIA board applications.
