HFA3765

Features: • I/Q Amplitude and Phase Balance . . 0.5dB, 2 Degrees• Voltage Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>60dB• AGC Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90dB• Output P1dB With 20pF Load . . . . . . . . . . ....

product image

HFA3765 Picture
See larger image
SeekIC No. : 004361764 Detail

HFA3765: Features: • I/Q Amplitude and Phase Balance . . 0.5dB, 2 Degrees• Voltage Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>60dB• AGC Range. . . . . . . . . . . ....

HFA3765 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HFA3765
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• I/Q Amplitude and Phase Balance . . 0.5dB, 2 Degrees
• Voltage Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>60dB
• AGC Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90dB
• Output P1dB With 20pF Load . . . . . . . . . . . . . . . 2.5VPP
• Low LO Drive Level . . . . . . . . . . . . . . . . . . . . . . -10dBm
• Power Enable/Disable Control
• Single Supply Battery Operation . . . . . . . . . 2.7 to 3.3V


Application

• IS-95A CDMA/AMPS Dual Mode Handsets
• Wideband CDMA Handsets
• Full Duplex Transceivers
• CDMA/TDMA Packet Protocol Radios


Pinout

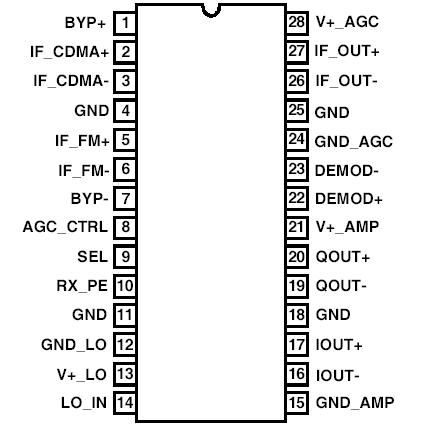

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +3.6V
Voltage on Any Other Pin . . . . . . . . . . . . . . . . . . -0.3V to VCC +0.3V


Description

The HFA3765 is a monolithic quadrature demodulator and a gain control amplifier stage with 90dB of dynamic range for CDMA/AMPS cellular applications. Two amplifier inputs are provided for interfacing different IF input filters. A local oscillator input requires low drive levels and a divide by two phase shifter with duty cycle compensation achieves excellent phase and amplitude balance properties. The HFA3765 is one of the four chips in the PRISM™ chip set and is housed in a 28 lead SSOP package ideally suited to cellular handset applications.
