HFA3661

Features:

• RF Frequency Range . . . . . . . . . . . . . . 2.0GHz to 2.7GHz
• IF Operation . . . . . . . . . . . . . . . . . . . . 10MHz to 250MHz
• High Conversion Gain 2.0GHz . . . . . . . . . . . . . . . . . 40dB
2.7GHz . . . . . . . . . . . . . . . . . 36dB
• High Output IP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . 11dBm
• Single Supply Battery Operation . . . . . . . . . 2.7V to 5.5V
• Power Enable Control
• LNA Bypass Control


Application

• Wireless Local Loop Systems
• PCMCIA Wireless Transceiver
• Wireless Local Area Network Modems
• CDMA/TDMA Packet Protocol Radios
• Full Duplex Transceivers
• Portable Battery Powered Equipment

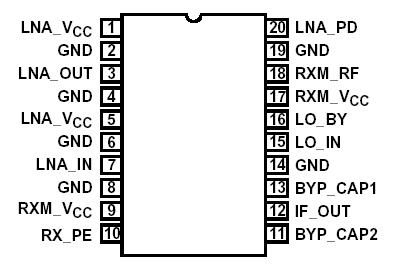

Pinout




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to 6.0V
Voltage on Any Other Pin. . . . . . . . . . . . . . . . . . . . -0.3 to V_CC 0.3V


Description

The HFA3661 is a monolithic bipolar device for down conversion applications in the 2.0GHz to 2.7GHz range. Manufactured in the Intersil UHF1X process, the device consists of a low noise amplifier and down conversion mixer. An energy saving power enable control feature assures isolation between transmit and receive channels for TDMA and/or half duplex systems.

The HFA3661 is designed for a high Output IP3, while maintaining low current and 5.5V to 2.7V supply operation. It requires low drive levels from the local oscillator and is housed in a small outline 20 lead SSOP package ideally suited for PCMCIA card applications.
