Product Details

Description

Features:

• High Gain-Bandwidth Product (fT) . . . . . . . . . . . . . 10GHz
• High Power Gain-Bandwidth Product . . . . . . . . . . . . 5GHz
• High Current Gain (hFE) . . . . . . . . . . . . . . . . . . . . . . . 70
• Noise Figure (Transistor) . . . . . . . . . . . . . . . . . . . . . 3.5dB
• Low Collector Leakage Current . . . . . . . . . . . . . <0.01nA
• Excellent hFE and VBE Matching
• Pin-to-Pin to UPA102G

Application

• Single Balanced Mixers
• Wide Band Amplification Stages
• Differential Amplifiers
• Multipliers
• Automatic Gain Control Circuits
• Frequency Doublers, Tripplers
• Oscillators
• Constant Current Sources
• Wireless Communication Systems
• Radio and Satellite Communications
• Fiber Optic Signal Processing
• High Performance Instrumentation

Pinout

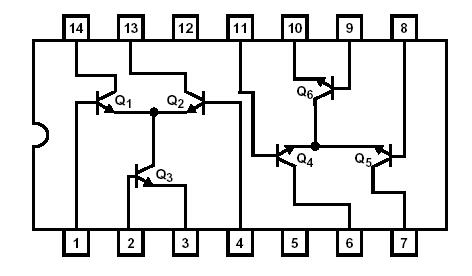

Connection Diagram

Specifications

V_CEOCollector to Emitter Voltage . . . . . . . . . . . . . . . . . . . 8.0V
V_CBO Collector to Base Voltage . . . . . . . . . . . . . . . . . . . . 12.0V
V_EBO Emitterr to Base Voltage . . . . . . . . . . . . . . . . . . . . . 12.0V
I_C, Collector Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30mA

Description

The HFA3102 is an all NPN transistor array configured as dual differential amplifiers with tail transistors. Based on Intersil bonded wafer UHF-1 SOI process, this array achieves very high fT (10GHz) while maintaining excellent hFE and VBE matching characteristics over temperature. Collector leakage currents of HFA3102 are maintained to under 0.01nA.
