HFA30TA60C

Product : Ultra Fast Recovery Rectifiers
Reverse Voltage : 600 V
Mounting Style : Through Hole
Packaging : Tube
Reverse Current IR : 10 uA
Forward Continuous Current : 15 A
Recovery Time : 60 ns
Configuration : Dual Common Cathode
Max Surge Current : 150 A
Package / Case : TO-220AB
Forward Voltage Drop : 1.7 V


Features:

• Ultrafast Recovery
• Ultrasoft Recovery
• Very Low IRRM
• Very Low Qrr
• Guaranteed Avalanche
• Specified at Operating Conditions




Application

• Reduced RFI and EMI
• Reduced Power Loss in Diode and Switching Transistor
• Higher Frequency Operation
• Reduced Snubbing
• Reduced Parts Count




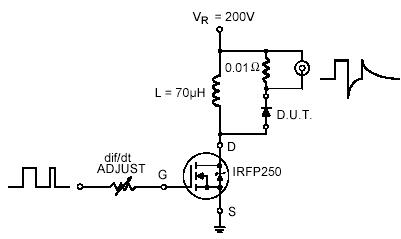

Pinout






Specifications

	Parameters	Max	Units
VR	Cathode-to-Anode Voltage	600	V
IF @ TC = 25°C	Continuous Forward Current		A
IF @ TC = 100°C	Continuous Forward Current	15	A
IFSM	Single Pulse Forward Current	150	A
IFRM	Maximum Repetitive Forward Current	60	A
PD @ TC = 25°C	Maximum Power Dissipation	74	W
PD @ TC = 100°C	Maximum Power Dissipation	29	W
TJ, TSTG	Operating Junction and Storage Temperatures	- 55 to 150	°C

Description

HEXFRED? Ultrafast Soft Recovery Diode, 2 x 15 A. International Rectifier's HFA30TA60C is a state of the art center tap ultra fast recovery diode. Employing the latest in epitaxial construction and advanced processing techniques HFA30TA60C features a superb combination of characteristics which result in performance which is unsurpassed by any rectifier previously available. With basic ratings of 600 volts and 15 amps per Leg continuous current, the HFA30TA60C is especially well suited for use as the companion diode for IGBTs and MOSFETs.

In addition to ultra fast recovery time, the HEXFRED product line features extremely low values of peak recovery current (IRRM) and does not exhibit any tendency to "snap-off" during the tb portion of recovery. The HEXFRED features combine to offer designers a rectifier with lower noise and significantly lower switching losses in both the diode and the switching transistor. These HEXFRED advantages can help to significantly reduce snubbing, component count and heatsink sizes. The HEXFRED HFA30TA60C is ideally suited for applications in power supplies and power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed.
