Manufacturer: Vishay Semiconductors
Diode Type: Standard
Speed: Fast Recovery = 200mA (Io)
Mounting Type: Chassis Mount
Voltage - DC Reverse (Vr) (Max): 600V
Diode Configuration: 1 Pair Common Cathode
Packaging: Bulk
Series: HEXFRED®
Package / Case: TO-244AB
Supplier Device Package: TO-244AB

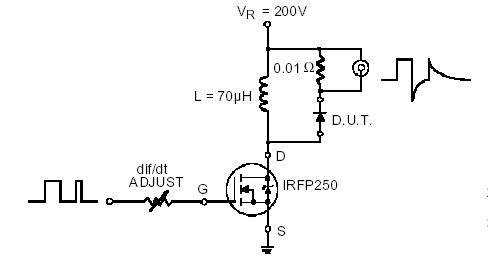

Reverse Recovery Time (trr): 140ns
Voltage - Forward (Vf) (Max) @ If: 1.7V @ 70A
Current - Reverse Leakage @ Vr: 15µA @ 600V
Current - Average Rectified (Io) (per Diode): 99A (DC)
Features: ·Reduced RFI and EMI
·Reduced Snubbing
·Extensive Characterization of
·Recovery ParametersPinout
Specifications
| |
Parameter |
Max. |
Units |
| VR |
Cathode-to-Anode Voltage |
600 |
V |
| IF @ TC = 25°C |
Continuous Forward Current |
99 |
A |
| IF @ TC = 100°C |
Continuous Forward Current |
48 |
| IFSM |
Single Pulse Forward Current |
600 |
| PD @ TC = 25°C |
Maximum Power Dissipation |
227 |
W |
| PD @ TC = 100°C |
Maximum Power Dissipation |
91 |
TJ
TSTG |
Operating Junction and
Storage Temperature Range |
-55 to +150 |
C |
DescriptionHFA140MD60C HEXFREDTM diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the recovery eliminates the need for a snubber in most applications. These HFA140MD60C devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.
