Manufacturer: Vishay Semiconductors
Voltage - DC Reverse (Vr) (Max): 400V
Diode Type: Standard
Speed: Fast Recovery = 200mA (Io)
Mounting Type: Chassis Mount
Diode Configuration: 1 Pair Common Cathode
Packaging: Bulk
Series: HEXFRED®
Voltage - Forward (Vf) (Max) @ If: 1.2V @ 60A
Reverse Recovery Time (trr): 140ns
Current - Reverse Leakage @ Vr: 6µA @ 400V
Package / Case: TO-244AB Isolated Tab
Supplier Device Package: TO-244AB (Isolated)
Current - Average Rectified (Io) (per Diode): 111A (DC)
Features: ·Reduced RFI and EMI
·Reduced Snubbing
·Extensive Characterization

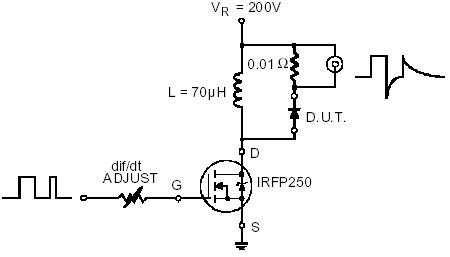

·Recovery ParametersPinout
Specifications
|
Parameters |
Max |
Units |
| VR |
Cathode-to-Anode Voltage |
400 |
V |
| IF @ TC = 25°C |
Continuous Forward Current |
111 |
A |
| IF @ TC = 100°C |
Continuous Forward Current |
53 |
A |
| IFSM |
Single Pulse Forward Current |
600 |
A |
| EAS |
Non-Repetitive Avalanche Energy |
1.4 |
mJ |
| PD @ TC = 25°C |
Maximum Power Dissipation |
179 |
W |
| PD @ TC = 100°C |
Maximum Power Dissipation |
71 |
W |
| TJ, TSTG |
Operating Junction and Storage Temperatures |
- 55 to 150 |
°C |
DescriptionHFA120MD40C diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the recovery eliminates the need for a snubber in most applications. These HFA120MD40C devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.
HFA120MD40C Data Sheet
