HFA1115

Features:

• User Programmable Output Voltage Limiting
• High Input Impedance . . . . . . . . . . . . . . . . . . . . . . . 1MW
• Differential Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.02%
• Differential Phase . . . . . . . . . . . . . . . . . . . . 0.03 Degrees
• Wide -3dB Bandwidth (AV = +2) . . . . . . . . . . . . . .225MHz
• Very Fast Slew Rate (AV = -1) . . . . . . . . . . . . . . 1135V/ms
• Low Supply Current . . . . . . . . . . . . . . . . . . . . . . . . 7.1mA
• High Output Current . . . . . . . . . . . . . . . . . . . . . . . . .60mA
• Excellent Gain Accuracy . . . . . . . . . . . . . . . . . . . 0.99V/V
• User Programmable For Closed-Loop Gains of +1, -1 or
+2 Without Use of External Resistors
• Fast Overdrive Recovery . . . . . . . . . . . . . . . . . . . . . <1ns
• Standard Operational Amplifier Pinout


Application

• Flash A/D Drivers
• Video Cable Drivers
• High Resolution Monitors
• Professional Video Processing
• Medical Imaging
• Video Digitizing Boards/Systems
• Battery Powered Communications

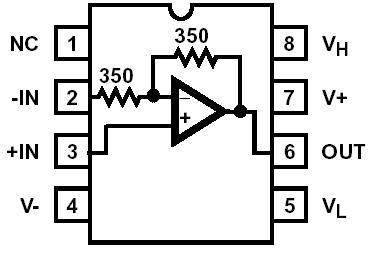

Pinout




Specifications

Voltage Between V+ and V- . . . . . . . . . . . . . . . . . . . . . . . . . . 11V
DC Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VSUPPLY
Output Current (Note 2) . . . . . . . . . . . . .  Short Circuit Protected
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7) . . . .600V


Description

The HFA1115 is a high speed closed loop Buffer featuring both user programmable gain and output limiting. Manufactured on Intersil's proprietary complementary bipolar UHF-1 process, the HFA1115 also offers a wide -3dB bandwidth of 225MHz, very fast slew rate, excellent gain flatness and high output current.

This HFA1115 buffer is the ideal choice for high frequency applications requiring output limiting, especially those needing ultra fast overload recovery times. The limiting function allows the designer to set the maximum positive and negative output levels, thereby protecting later stages from damage or input saturation. The HFA1115 also allows for voltage gains of +2, +1, and -1, without the use of external resistors. Gain selection is accomplished via connections to the inputs, as described in the "Application Information" text. The result is a more flexible product, fewer part types in inventory, and more efficient use of board space.

Compatibility with existing op amp pinouts provides flexibility to upgrade low gain amplifiers, while decreasing component count. Unlike most buffers, the standard pinout provides an upgrade path, should a higher closed loop gain be needed at a future date. For Military product, refer to the HFA1115/883 data sheet.
