Product
: Ultra Fast Recovery Rectifiers
Configuration
: Single
Forward Continuous Current
: 8 A
Max Surge Current
: 80 A
Reverse Current IR
: 5 uA
Mounting Style
: Through Hole
Packaging
: Tube
Package / Case
: TO-220AC
Recovery Time
: 80 ns
Reverse Voltage
: 1200 V
Forward Voltage Drop
: 3.9 V at 12 A
Features: • Ultrafast Recovery
• Ultrasoft Recovery
• Very Low IRRM
• Very Low Qrr
• Specified at Operating ConditionsApplication• Reduced RFI and EMI
• Reduced Power Loss in Diode and Switching Transistor
• Higher Frequency Operation
• Reduced Snubbing
• Reduced Parts CountPinoutSpecifications

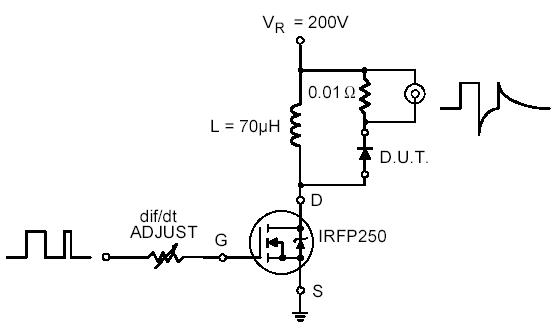

Parameters |
Max |
Units |
VR |
Cathode-to-Anode Voltage |
1200 |
V |
IF @ TC = 100°C |
Continuous Forward Current |
8.0 |
A |
IFSM |
Single Pulse Forward Current |
80 |
A |
IFRM |
Maximum Repetitive Forward Current |
24 |
A |
PD @ TC = 25°C |
Maximum Power Dissipation |
62.5 |
W |
PD @ TC = 100°C |
Maximum Power Dissipation |
25 |
|
TJ, TSTG |
Operating Junction and Storage Temperatures |
- 55 to 150 |
°C |
DescriptionInternational Rectifier's HFA06TB120 is a state of the art ultra fast recovery diode. Employing the latest in epitaxial construction and advanced processing techniques it features a superb combination of characteristics which result in performance which is unsurpassed by any rectifier previously available. With basic ratings of 1200 volts and 6 amps continuous current, the HFA06TB120 is especially well suited for use as the companion diode for IGBTs and MOSFETs.
In addition to ultra fast recovery time, the HEXFRED product line features extremely low values of peak recovery current (IRRM) and does not exhibit any tendency to "snap-off" during the tb portion of recovery. The HFA06TB120 features combine to offer designers a rectifier with lower noise and significantly lower switching losses in both the diode and the switching transistor. These HEXFRED advantages can help to significantly reduce snubbing, component count and heatsink sizes.
The HEXFRED HFA06TB120 is ideally suited for applications in power supplies and power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed.
