HFA-0001

Features: • Unity Gain Bandwidth. . . . . . . . . . . . . . . . . . . . . . 350MHz• Full Power Bandwidth . . . . . . . . . . . . . . . . . . . . . . 53MHz• High Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . 1000V/s• High Output Drive. . . . . . . . . . . . . ....

product image

HFA-0001 Picture
See larger image
SeekIC No. : 004361676 Detail

HFA-0001: Features: • Unity Gain Bandwidth. . . . . . . . . . . . . . . . . . . . . . 350MHz• Full Power Bandwidth . . . . . . . . . . . . . . . . . . . . . . 53MHz• High Slew Rate . . . . ....

HFA-0001 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HFA-0001
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Unity Gain Bandwidth. . . . . . . . . . . . . . . . . . . . . . 350MHz
• Full Power Bandwidth . . . . . . . . . . . . . . . . . . . . . . 53MHz
• High Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . 1000V/s
• High Output Drive. . . . . . . . . . . . . . . . . . . . . . . . .  ±50mA
• Monolithic Construction


Application

• RF/IF Processors
• Video Amplifiers
• High Speed Cable Drivers
• Pulse Amplifiers
• High Speed Communications
• Fast Data Acquisition Systems

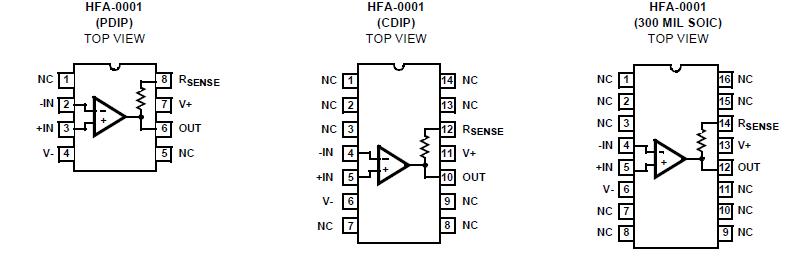

Pinout

Connection Diagram


Specifications

Supply Voltage (Between V+ and V- Terminals) . . . . . . . . . . . . .12V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5V
Input Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .  ±4V
Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60mA
Junction Temperature (Note 9) . . . . . . . . . . . . . . . . . . . . . . .+175oC
Junction Temperature (Plastic Package) . . . . . . . . . . . . . . . .+150oC
Lead Temperature (Soldering 10 Sec.) . . . . . . . . . . . . . . . . .+300oC
