HEX 2-INPUT

Features:

• High Capacitive-Drive Capability
• 4ALS804A Has Typical Delay Time of 4 ns (CL = 50 pF) and Typical Power Dissipation of 3.4 mW Per Gate
• 4AS804B Has Typical Delay Time of 2.6 ns (CL = 50 pF) and Typical Power Dissipation of Less Than 9 mW Per Gate
• Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs

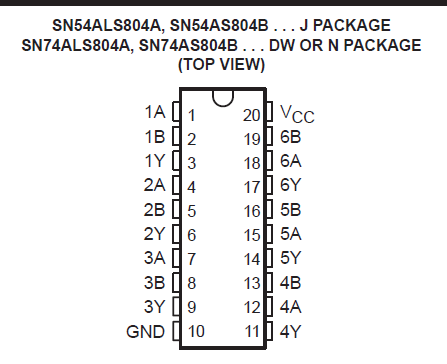

Pinout




Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Operating free-air temperature range, TA: SN54ALS804A . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .  . . . .  . . . .  55°C to 125°C
SN74ALS804A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .  . . . .  . . . . .65°C to 150°C


Description

These devices contain six independent 2-input NAND drivers. They perform the Boolean functions Y = A • B or Y = A + B in positive logic.
The SN54ALS804A and SN54AS804B are characterized for operation over the full military temperature range of 55°C to 125°C. The SN74ALS804A and SN74AS804B are characterized for operation from 0°C to 70°C.
