Product Details

Description



Pinout

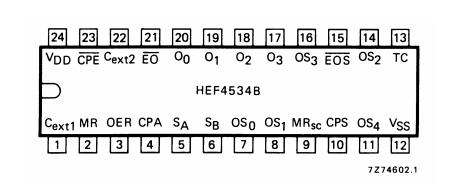

  Connection Diagram


Description

The HEF4534B is a 5-decade ripple counter. The binary utputs of the decade counters are time-multiplexed by an nternal scanner on four BCD outputs (O0 to O3). The elected decade is indicated by a logic HIGH on the ppropriate digit select output (OS0: units, 1; OS1: tens, 0; OS2: hundreds, 102;OS3: thousands, 103; OS4: ten housands, 104).

The binary outputs (O0 to O3) and the select outputs OS0 to OS4) of HEF4534B are 3-state controlled via enable inputs O and EOS respectively, allowing interface with other us orientated devices. Cascading may be accomplished y using the carry out (TC). The counter is triggered by a OW to HIGH transition on the decade clock (CPA) and is eset by a HIGH level on the master reset (MR). The scanner is triggered by a LOW to HIGH transition on the canner clock (CPS) and is reset (select ten thousand ounter) by a HIGH level on the scanner reset (MRsc). he counter can operate in four modes depending on the tate of the mode select inputs (SA,SB). The error detector ill detect an error when a positive edge on CPA is not ccompanied by a negative edge on the error detector lock CPE or vice versa, within time limits adjusted by xternal capacitors connected to Cext 1 and Cext 2. Three or ore detected errors result in a HIGH level on the error utput (OER). The error detector is reset by a HIGH level n MR.

Schmitt-trigger action in the clock inputs makes the HEF4534B circuit ighly tolerant to slower clock rise and fall times.
