HEF40192B

Features: The HEF40192B is a 4-bit synchronous up/down decade counter. The counter has a count-up clock input (CPU), a count-down clock input (CPD), an asynchronous parallel load input (PL), four parallel data inputs (P0 to P3), an asynchronous master reset input (MR), four counter outputs (O0 to ...

product image

HEF40192B Picture
See larger image
SeekIC No. : 004361332 Detail

HEF40192B: Features: The HEF40192B is a 4-bit synchronous up/down decade counter. The counter has a count-up clock input (CPU), a count-down clock input (CPD), an asynchronous parallel load input (PL), four pa...

HEF40192B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HEF40192B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The HEF40192B is a 4-bit synchronous up/down decade counter. The counter has a count-up clock input (CPU), a count-down clock input (CPD), an asynchronous parallel load input (PL), four parallel data inputs (P0 to P3), an asynchronous master reset input (MR), four counter outputs (O0 to O3), an active LOW terminal count-up (carry) output (TCU) and an active LOW terminal count-down (borrow) output (TCD).

The counter outputs change state on the LOW to HIGH transition of either clock input. However, for correct counting, both clock inputs cannot be LOW simultaneously. The outputs TCU and TCD are normally HIGH. When the circuit has reached the maximum count state of '9', the next HIGH to LOW transition of CPU will cause TCU to go LOW. TCU will stay LOW until CPU goes HIGH again. Likewise, output TCD will go LOW when the circuit is in the zero state and CPD goes LOW. When PL is LOW, the information on P0 to P3 is asynchronously loaded into the counter. A HIGH on MR resets the counter independent of all other input conditions. The counter stages are of a static toggle type flip-flop.


Pinout

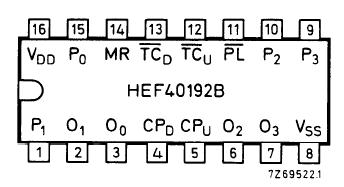

Connection Diagram
