HEF4017B

Application

Some examples of applications for the HEF4017B are:
· Decade counter with decimal decoding
· 1 out of n decoding counter (when cascaded)
· Sequential controller
· Timer.

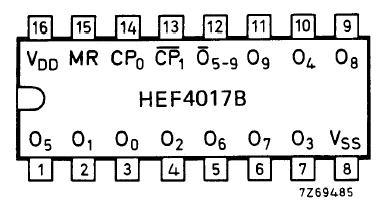

Pinout




Description

The HEF4017B is a 5-stage Johnson decade counter with ten spike-free decoded active HIGH outputs (Oo to O9), an active LOW output from the most significant flip-flop (O5-9), active HIGH and active LOW clock inputs (CP0, CP1) and an overriding asynchronous master reset input (MR).

The HEF4017B counter is advanced by either a LOW to HIGH transition at CP0 while CP1 is LOW or a HIGH to LOW transition at CP1 while CP0 is HIGH (see also function table). When cascading counters, the O5-9 output, which is LOW while the counter is in states 5, 6, 7, 8 and 9, can be used to drive the CP0 input of the next counter.

A HIGH on MR resets the counter to zero (Oo = O5-9 = HIGH; O1 to O9 = LOW) independent of the clock inputs (CP0, CP1). Automatic code correction of the counter is provided by an internal circuit: following any illegal code the counter returns to a proper counting mode within 11 clock pulses. Schmitt-trigger action in the clock input makes the HEF4017B circuit highly tolerant to slower clock rise and fall times.
