HDSP-F16x

• Industry Standard Size
• Industry Standard Pinout
7.6 mm (0.3 inch) DIP Single 15.24 mm (0.6 inch) DIP Dual Leads on 2.54 mm (0.1 inch) Centers
• Choice of Colors
AlGaAs Red, High Efficiency Red, Orange, Yellow, Green
• Excellent Appearance
Evenly Lighted Segments Mitered Corners on Segments Gray Package Gives Optimum Contrast Black Surface and Color Tinted Epoxy (HDSP-F161 only) ± 50° Viewing Angle
• Design Flexibility

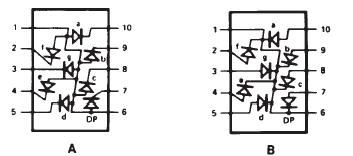

Common Anode or Common Cathode Single and Dual Digits Right Hand Decimal Point ± 1. Overflow Character
• Categorized for Luminous Intensity
Yellow and Green Categorized for Color Use of Like Categories Yields a Uniform Display
• High Light Output
• High Peak Current
• Excellent for Long Digit String Multiplexing
• Intensity and Color Selection Option
• Sunlight Viewable AlGaAs

Description The 10 mm (0.40 inch) LED seven segment displays are Agilent's most space-efficient character size. HDSP-F16x are designed for viewing distances up to 4.5 metres (15 feet). These devices use an industry standard size package and pinout. The dual numeric, single numeric, and ± 1. overflow devices feature a right hand decimal point. All HDSP-F16x devices are available as either common anode or common cathode.

Typical applications of HDSP-F16x include instruments, point of sale terminals, and appliances.
