HDSP-816G

Character Size :
Wavelength :
Operating Voltage :
Maximum Operating Temperature :
Minimum Operating Temperature :
Display Type : 7 Segment
Number of Digits : 1
Packaging : Tube
Illumination Color : Green
Common Pin : Common Cathode
Operating Current : 20 mA


Features:

• Industry Standard Size
• Industry Standard Pin-Out
15.24 mm (0.6 in.) DIP Leads
on 2.54 mm (0.1 in.) Centers
• Choice of Colors
Red, Green
• Mitered Font
Mitered Corners on Segments
• Gray Face Paint
Gray Package Gives Optimum
Contrast
• ± 50° Viewing Angle
• Design Flexibility
Common Anode or Common
Cathode
• Categorized for Luminous
Intensity




Application

• Suitable for Indoor Use
• Not Recommended for
Industrial Applications, i.e.
Operating Temperatures
Requirements Exceeding
85 or Below -25^[1]
• Extreme Temperature
Cycling Not
Recommended^[2]

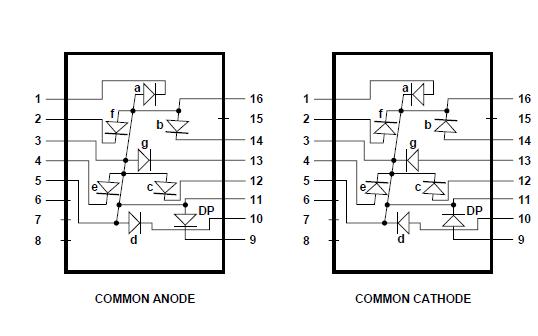

Pinout






Specifications

Parameter	High Efficiency Red HDSP-815E HDSP-816E	Green HDSP-815G HDSP-816G	Units
Average Power per Segment or DP	62.5	65	MW
Peak Forward Current per Segment or DP (1/10 Duty Cycle, 0.1 ms Pulse Width)	100	90	mA
DC Forward Current per Segment or DP[1]	25	25	mA
Reverse Voltage per Segment or DP	3	3	V
Operating Temperature	-25 to +85	-25 to +85
Storage Temperature	-25 to +85	-25 to +85
Wave Soldering Temperature for 3 Seconds[2] (1.6 mm [0.063 in.] below Body)	250	250

Description

These HDSP-816G 20 mm (0.8 inch) displays use industry standard size and pin-out. The devices are available as either common anode or common cathode. Available in either red or green colors, these gray-faced displays are suitable for indoor use. No color binning is offered for these parts.

These HDSP-816G parts are subjected to Outgoing Quality Assurance (OQA) inspection with AQL of 0.065% for functional and visual/cosmetic rejects.
