HDLX-2416

Features:

• Enhanced Drop-in Replacement to HPDL-2416
• Smart Alphanumeric Display Built-in RAM, ASCII Decoder, and LED Drive Circuitry
• CMOS IC for Low Power Consumption

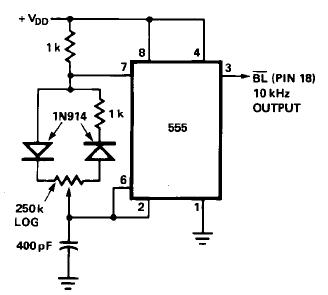

• Software Controlled Dimming Levels and Blank
• 128 ASCII Character Set
• End-Stackable
• Categorized for Luminous Intensity; Yellow and Green Categorized for Color
• Low Power and Sunlight Viewable AlGaAs Versions
• Wide Operating Temperature Range -40°C to +85°C
• Excellent ESD Protection
• Wave Solderable
• Wide Viewing Angle (50° typ)


Pinout




Specifications

Supply Voltage, VDD to Ground[1] ............................ -0.5 V to 7.0 V
Input Voltage, Any Pin to Ground ................... -0.5 V to V_DD + 0.5 V
Free Air Operating Temperature Range, T_A .... ..... -40°C to +85°C
Storage Temperature, T_S ................................... .. -40°C to 100°C
CMOS IC Junction Temperature, T_J (IC) ...............................+150°C
Relative Humidity (non-condensing) at 65°C............................. 85%
Maximum Solder Temperature, 1.59 mm
(0.063 in.) below Seating Plane, t < 5 sec. ............................ 260°C
ESD Protection, R = 1.5 kW, C = 100 pF ............. V_Z = 2 kV (each pin)


Description

These HDLX-2416 are 5.0 mm (0.2 inch) four character 5 x 7 dot matrix displays driven by an on-board CMOS IC. These displays are pin for pin compatible with the HPDL-2416.

The HDLX-2416 IC stores and decodes 7 bit ASCII data and displays it using a 5 x 7 font. Multiplexing circuitry, and drivers are also part of the IC.

The HDLX-2416 IC has fast setup and hold times which makes it easy to interface to a microprocessor.
