HDJD-S831-QT333

Package / Case :
Image Size :
Type : Color Sensors
Maximum Operating Temperature : + 70 C
Packaging : Reel
Operating Supply Voltage : 4.5 V to 5.5 V
Color Sensing : Color
Minimum Operating Temperature : 0 C


Features:

• Converts light to R,G,B voltage output
• Monolithic CMOS IC solution with integrated R,G,B color filter, photodiode array, transimpedance amplifier in one chip
• 12x12 photodiode array design minimizes the effect of contamination and optical aperture misalignment
• Spectral sensitivity response optimized for RGB-LED backlight application: good detection capability in light chromaticity drift
• Small module size (27.6 mm x 7 mm x 3 mm)
• Internal 5 V to 3.3 V voltage regulator


Application

Agilent Color Sensor is ideal for open-loop color identification and closed-loop color point control. The spectral sensitivity response of the sensor is optimized for RGB-LED backlight applications. The sensor has good detection ability in light output chromaticity drift, when used with closedloop feedback controller, manages to bring the backlight system to realize good du'v' performance. Potential applications include white point control in emissive display, environmental lighting, color control in industrial processes, and many more.


Pinout




Specifications

Parameter	Symbol	Min.	Max.	Unit	Notes
Supply Voltage	VDD5	4.5	5.5	V
Storage Temperature	TS	-20	85	°C
Operating Temperature	TA	-20	85	°C
Human Body Model ESD Rating	ESDHBM		2	kV	Reference to JESD22-A114-B

Description

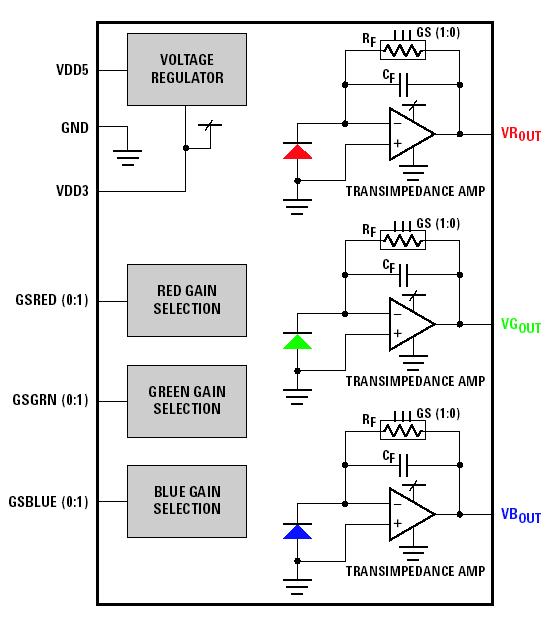

Agilent Color Sensor is a high performance, small in size, cost effective light to voltage converting sensor. The HDJD-S831-QT333 sensor combines a photodiode array and three trans-impedance amplifiers in a single monolithic CMOS IC solution. With Red (R), Green (G), and Blue (B) color filters coated over the photodiode array, the sensor converts RGB light to analog voltage outputs, denoted by VROUT, VGOUT and VBOUT, respectively.

The HDJD-S831-QT333 sensor is driven by a single 5 V supply and incorporates an internal 5 V to 3.3 V voltage regulator. The color sensor module consists of a color sensor packaged in a 5 x 5 x 2 [mm] surface mount QFN-16, flat flexible cable connector and a decoupling capacitor mounted on a PCB.
