Features:

•  Encapsulated in very small 5pins package of 2.9 * 1.6 * 1.1 mm, the efficiency to mount on substrate is ignificantly improved.
•  The basic gate function is lined up as hitachi uni logic series.
•  Supplied on embos taping for high speed automatic mounting.
•  Electrical characteristics equivalent to the HD74HC02
Supply voltage range:  2 to 6 V
Operating temperature range:  40 to +85°C
•  | IOH | = IOL = 2 mA (min)


Pinout

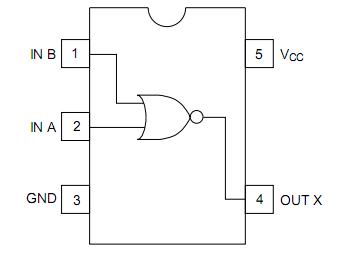

Connection Diagram


Specifications

Item Symbol Ratings Unit
supply voltage VCC 0.5 to +7.0 V
input voltage VIN 0.5 to VCC +0.5 V
Output voltage VOUT 0.5 to VCC +0.5 V
Input diode current IIK ±20 mA
Output diode current IOK ±20 mA
Output current IOUT ±25 mA
VCC/GND current) ICC, IGND ±25 mA
Power dissipation PT 200 mW
Strage temperature Tstg 65 to +150



Description

The HD74UH02 is high speed CMOS two input NOR gate using silicon gate CMOS process.  With CMOS ow power dissipation, it provides high speed equivalent to LS-TTL series.  The HD74UH02 internal circuit of three tages construction with buffer provides wide noise margin and stable output.
