Features:

·  VCC = 2.0 V to 5.5 V
·  All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
·  All outputs VOUT (Max.) = 5.5 V (@VCC = 0 V or output off state)
·  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
·  Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
·  High output current ±24 mA (@VCC = 3.0 V to 5.5 V)


Pinout

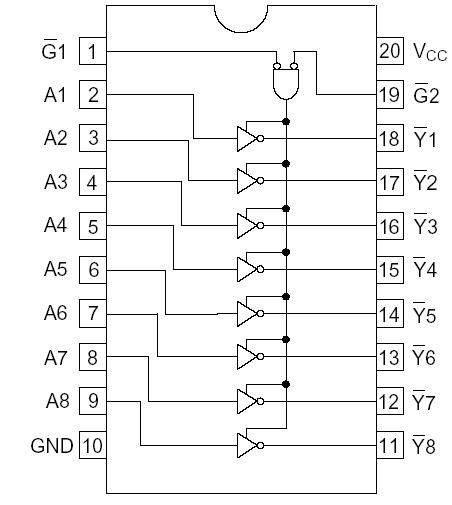

Connection Diagram




Specifications

Item
Symbol
Ratings
Unit
Conditions
Supply voltage
VCC
0.5 to 6.0
V
Input diode current
IIK
50
mA
VI = 0.5 V
Input voltage
VI
0.5 to 6.0
V
Output diode current
IOK
50
mA
VO = 0.5 V
50
mA
VO = VCC+0.5 V
Output voltage
VO
0.5 to VCC +0.5
V
Output "H" or "L"
VO
 0.5 to 6.0
V
           Output "Z" or VCC:OFF
Output current
IO
±50
mA
VCC, GND current / pin
ICC or IGND
100
mA
Storage temperature
Tstg
65 to +150



Description

The HD74LVC540A has eight inverter drivers with three state outputs in a 20 pin package. When G1 and G2 is low level, this drivers set up output is enable. Low voltage and high speed operation of HD74LVC540A is suitable at the battery drive product (note type personal computer) and low power consumption extends the life of a battery for long time operation.
