Product Details

Description



Features:

·  VCC = 2.0 V to 5.5 V
·  All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
·  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
·  Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
·  High output current ±24 mA (@VCC = 3.0 V to 5.5 V)

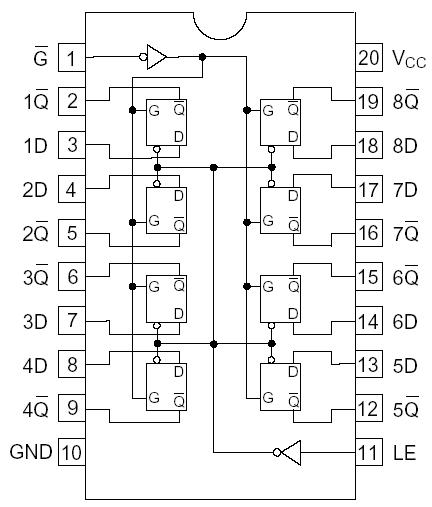

Pinout

Connection Diagram


Specifications

Item
Symbol
Ratings
Unit
Conditions
Supply voltage
VCC
0.5 to 6.0
V
Input voltage
IIK
50
mA
V = 0.5 V
Input diode current
          VI
0.5 to 6.0
V

Output diode current
IOK
-50
mA
VO = 0.5 V
50
VO = VCC+0.5 V
Output voltage
VO
0.5 to VCC +0.5
V
Output current
IO
±50
mA
VCC, GND current / pin
ICC or IGND
100
mA
Storage temperature
Tstg
65 to 150



Description

The HD74LVC533 has eight D type latches with three state outputs in a 20 pin package. When the latch enable input is high, the Q outputs will follow the D inputs. When the HD74LVC533 latch enable goes low, data at the D inputs will be retained at the outputs until latch enable returns high again. When a high logic level is applied to the output control input, all outputs go to a high impedance state, regardless of what signals are present at the other inputs and the state of the storage elements. Low voltage and high speed operation is suitable at the battery drive product (note type personal computer) and low power consumption extends the life of a battery for long time operation.
