Features:

·  VCC = 2.7 to 5.5 V
·  All inputs VIH (Max) = 5.5 V (@VCC = 0 to 5.5 V)
·  All outputs VO (Max) = 5.5 V (@VCC = 0 V or output off state)
·  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
·  Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
·  High output current ±24 mA (@VCC = 3.0 to 5.5 V)



Pinout

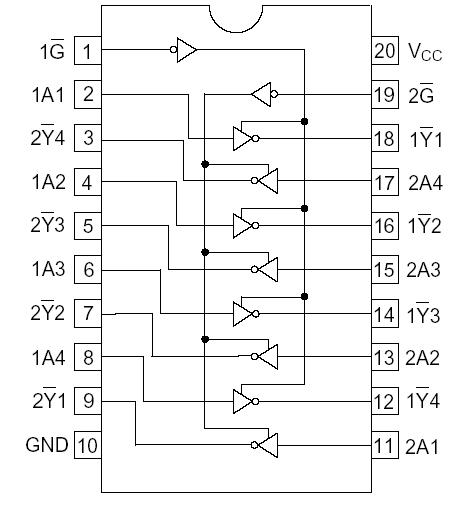

Connection Diagram


Specifications

Item
Symbol
Ratings
Unit
Conditions
Supply voltage
VCC
0.5 to 6.0
V
Input diode current
IIK
50
mA
VI = 0.5 V
Input voltage
VI
0.5 to 6.0
V
Output diode current
IOK
50
mA
VO = 0.5 V
50
mA
VO = VCC+0.5 V
Output voltage
VO
0.5 to VCC +0.5
V
Output "H" or "L"

VO
  0.5 to 6.0
V
            Output "Z" or VCC:OFF
Output current
IO
±50
mA
VCC, GND current / pin
ICC or IGND
100
mA
Storage temperature
Tstg
65 to +150



Description

The HD74LVC240A has eight inverter drivers with three state outputs in a 20 pin package. This HD74LVC240A is a inverting buffer and has two active low enables (1G and 2G). Each enable independently controls four buffers. Low voltage and high speed operation is suitable at the battery drive product (note type personal computer) and low power consumption extends the life of a battery for long time operation.
