Product Details

Description



Features:

`  VCC = 2.0 V to 5.5 V
`  All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
`  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25)
`  Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25)
`  High output current ±24 mA (@VCC = 3.0 V to 5.5 V)


Pinout

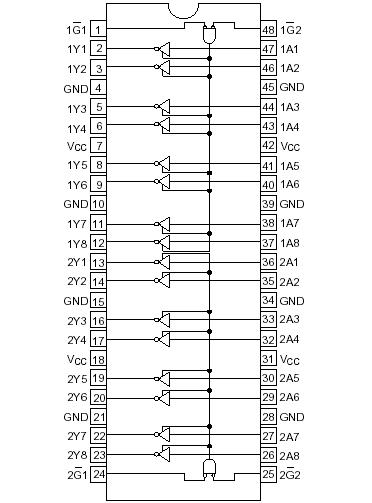

Connection Diagram


Description

The HD74LVC16540 has sixteen inverter drivers with three state outputs in a 48 pin package. When G1and G 2 is low level, this drivers set up output is enable. Low voltage and high speed operation is suitableat the battery drive product (note type personal computer) and low power consumption extends the life of abattery for long time operation.
