HD74LVC16240A_1121616

Features: • VCC = 2.0 V to 5.5 V• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)• All outputs VOUT (Max.) = 5.5 V (@VCC = 0 V or output off state)• Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)• Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta...

product image

HD74LVC16240A_1121616 Picture
See larger image
SeekIC No. : 004360741 Detail

HD74LVC16240A_1121616: Features: • VCC = 2.0 V to 5.5 V• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)• All outputs VOUT (Max.) = 5.5 V (@VCC = 0 V or output off state)• Typical VOL ground bo...

HD74LVC16240A_1121616 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74LVC16240A_1121616
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•  VCC = 2.0 V to 5.5 V
•  All inputs VIH (Max.) = 5.5 V (@VCC  = 0 V to 5.5 V)
•  All outputs VOUT (Max.) = 5.5 V (@VCC = 0 V or output off state)
•  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
•  Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
•  High output current ±24 mA (@VCC = 3.0 V to 5.5 V)


Pinout

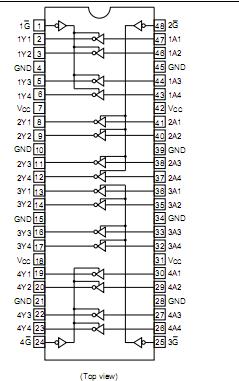

Connection Diagram


Specifications

Item Symbol Ratings Unit Conditions
Supply voltage VCC 0.5 to 6.0 V
Input diode current IIK -50 mA VI = 0.5 V
Input voltage VI 0.5 to 6.0 V
Output diode current IOK -50 mA VO = 0.5 V
50 mA VO = VCC +0.5 V
Output voltage VO 0.5 to VCC +0.5 V Output "H" or "L"
0.5 to 6.0 V Output "Z" or VCC:OFF
Output current IO ±50 mA
VCC, GND current / pin ICC or IGND 100 mA
Storage temperature Tstg 65 to 150 °C

Note: The absolute maximum ratings are values which must not individually be exceeded, and furthermore, o two of which may be realized at the same time.




Description

The HD74LVC16240A has sixteen inverter drivers with three state outputs in a 48 pin package.  This HD74LVC16240A is a inverting buffer and has two active low enables (1G to 4G).  Each enable independently controls our buffers.  Low voltage and high speed operation is suitable at the battery drive product (note type ersonal computer) and low power consumption extends the life of a battery for long time operation.
