Product Details

Description



Features:

·  VCC = 2.0 V to 5.5 V
·  All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
·  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
·  Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
·  High output current ±24 mA (@VCC = 3.0 V to 5.5 V)


Pinout

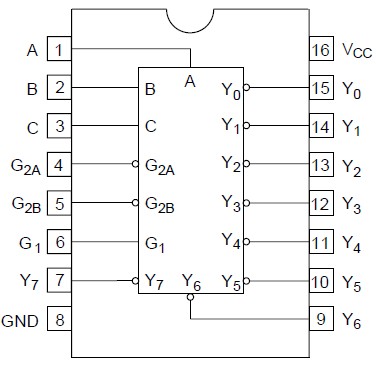

Connection Diagram


Specifications

Item Symbol Ratings Unit Conditions
Supply voltage VCC 0.5 to 6.0 V
Input diode current IIK 50 mA VI = 0.5V
Input voltage VI 0.5 to 6.0 V
Output diode curren IOK 50 mA VO = 0.5 V
50 mA VO = VCC +0.5 V
Output voltage VO 0.5 to VCC +0.5 V
Output current IO ±50 mA
VCC, GND current / pin ICC or IGND 100 mA
Storage temperature Tstg 65 to +150 °C

Note: The absolute maximum ratings are values which must not individually be exceeded, and furthermore,no two of which may be realized at the same time.




Description

The HD74LVC138 has three binary select inputs in a 16 pin package. If the device is enabled these inputs determine which one of the eight normally high outputs will go low. Two active low and one active high enables are provided to ease the cascading of decoders. Low voltage and high speed operation of HD74LVC138 is suitable at the battery drive product (note type personal computer) and low power consumption extends the life of a battery for long time operation.
