HD74LV74A

Features: · VCC = 2.0 V to 5.5 V operation· All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)· All outputs VO (Max.) = 5.5 V (@VCC = 0 V)· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)· Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C)· Output current ±6 mA (@VCC = 3.0...

product image

HD74LV74A Picture
See larger image
SeekIC No. : 004360734 Detail

HD74LV74A: Features: · VCC = 2.0 V to 5.5 V operation· All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)· All outputs VO (Max.) = 5.5 V (@VCC = 0 V)· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = ...

HD74LV74A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74LV74A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  VCC = 2.0 V to 5.5 V operation
·  All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
·  All outputs VO (Max.) = 5.5 V (@VCC = 0 V)
·  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
·  Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C)
·  Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V)


Pinout

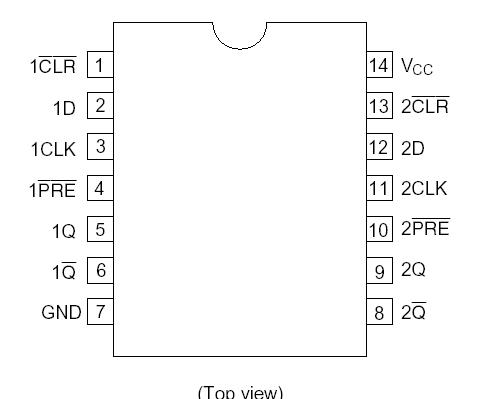

Connection Diagram


Specifications

Symbol
Item
Conditions
Unit
Ratings
VCC
 Supply voltage range

13.0
V
 0.5 to 7.0
VI
 Input voltage range*1
320
V
 0.5 to 7.0
VO
 Output voltage range*1, 2
Output: H or L
V
 0.5 to VCC + 0.5
VCC: OFF
 0.5 to 7.0
IIK
 Input clamp current
VI < 0
mA
20
IOK
 Output clamp current
VO < 0 or VO > VCC
mA
±50
IO
 Continuous output current
VO = 0 to VCC
mA
±25
ICC or IGND
 Continuous current through
VCC or GND
mA
±50
PT
 Maximum power dissipation
at Ta = 25°C (in still air)*3
SOP
mW
785

500
Tstg
 Storage temperature
TSSOP
°C
 65 to 150



Description

The HD74LV74A has independent data, preset, clear, and clock inputs Q and Q outputs in a 14 pin
package. The input data is transferred to the output at the rising edge of clock pulse CLK. Low-voltage
and high-speed operation of HD74LV74A is suitable for the battery-powered products (e.g., notebook computers), and the
low-power consumption extends the battery life.
