Features: • The basic gate function is lined up as Renesas uni logic series.• Supplied on emboss taping for high-speed automatic mounting.• Control input is TTL compatible input level. Supply voltage range : 3.0 to 5.5 V Operating temperature range : 40 to +85°C• Logic-leve...
HD74LV2GT123A: Features: • The basic gate function is lined up as Renesas uni logic series.• Supplied on emboss taping for high-speed automatic mounting.• Control input is TTL compatible input le...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item |
Symbol |
Ratings |
Unit |
Test Conditions |
Supply voltage range |
VCC |
0.5 to 7.0 |
V |
|
Input voltage range *1 |
VI |
0.5 to 7.0 |
V |
|
Output voltage range *1, 2 |
VO |
0.5 to VCC + 0.5 |
V |
Output : H or L |
Input clamp current |
IIK |
20 |
mA |
VI < 0 |
Output clamp current |
IOK |
±50 |
mA |
VO < 0 or VO > VCC |
Continuous output current |
IO |
±25 |
mA |
VO = 0 to VCC |
Continuous current through |
ICC or IGND |
±50 |
mA |
|
Maximum power dissipation |
PT |
200 |
mW |
|
Storage temperature |
Tstg |
65 to 150 |
°C |

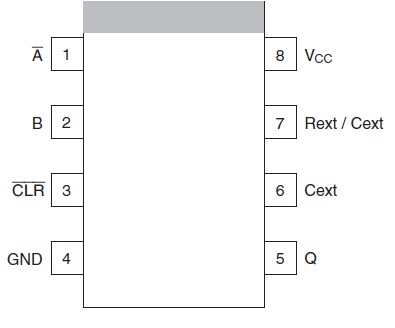

The HD74LV2GT123A features output pulse duration control by three methods. In the first method, the A input is low and the B input goes high. In the second method, the B input is high and theA input goes low. In the third method, the A input is low, the B input is high, and the clear (CLR) input goes high. The basic pulse duration is programmed by selecting external resistance and capacitance values. The external timing capacitor must be connected between Cext and Rext/Cext (positive) and an external resistor connected between Rext/Cext and VCC. To obtain variable pulse durations, connect an external variable resistance between Rext/Cext and VCC. Once triggered, the basic pulse duration can be extended by retriggering the gated low level active (A) or high level active (B) input. Pulse duration can be reduced by taking CLR low. The output pulse equation of HD74LV2GT123A is simply : tWQ = Cext • Rext. The input protection circuitry on this device allows over voltage tolerance on the input, allowing the device to be used as a logiclevel translator from 3.0 V CMOS Logic to 5.0 V CMOS Logic or from 1.8 V CMOS logic to 3.0 V CMOS Logic while operating at the high-voltage power supply. Low voltage and high speed operation of HD74LV2GT123A is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
