HD74LV2G157A

Features: • The basic gate function is lined up as hitachi uni logic series.• Supplied on emboss taping for high speed automatic mounting.• Electrical characteristics equivalent to the HD74LV157A Supply voltage range : 1.65 to 5.5 V Operating temperature range : 40 to +85°C•...

product image

HD74LV2G157A Picture
See larger image
SeekIC No. : 004360726 Detail

HD74LV2G157A: Features: • The basic gate function is lined up as hitachi uni logic series.• Supplied on emboss taping for high speed automatic mounting.• Electrical characteristics equivalent to...

HD74LV2G157A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74LV2G157A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• The basic gate function is lined up as hitachi uni logic series.
• Supplied on emboss taping for high speed automatic mounting.
• Electrical characteristics equivalent to the HD74LV157A
   Supply voltage range : 1.65 to 5.5 V
   Operating temperature range : 40 to +85°C
• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
   All outputs VO (Max.) = 5.5 V (@VCC = 0 V)
• Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V)
• All the logical input has hysteresis voltage for the slow transition.


Pinout

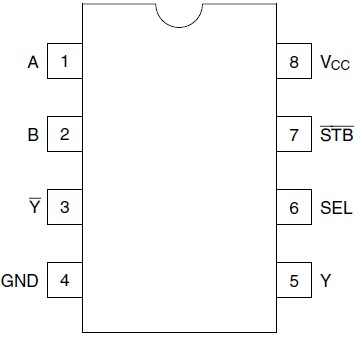

Connection Diagram


Specifications

Item

Symbol

Ratings

Unit

Test Conditions

Supply voltage range

VCC

0.5 to 7.0

V

Input voltage range *1

VI

0.5 to 7.0

V

Output voltage range *1, 2

VO

0.5 to VCC + 0.5
0.5 to 7.0

V

Output : H or L
VCC : OFF or output : Z

Input clamp current

IIK

20

mA

VI < 0

Output clamp current

IOK

±50

mA

VO < 0 or VO > VCC

Continuous output current

IO

±25

mA

VO = 0 to VCC

Continuous current through
VCC or GND

ICC or IGND

±50

mA

Maximum power dissipation
at Ta = 25°C (in still air) *3

PT

200

mW

Storage temperature

Tstg

65 to 150

°C




Description

The HD74LV2G157A has 2channel multiplexer in a 8 pin package. Low voltage and high speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
