Product Details

Description

Features:

• The basic gate function is lined up as Renesas uni logic series.
• Supplied on emboss taping for high-speed automatic mounting.
• Electrical characteristics equivalent to the HD74LV125A
   Supply voltage range : 1.65 to 5.5 V
   Operating temperature range : 40 to +85°C
• All inputs V_IH (Max.) = 5.5 V (@V_CC = 0 V to 5.5 V)
   All outputs V_O (Max.) = 5.5 V (@V_CC = 0 V, Output : Z)
• Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@V_CC = 4.5 V to 5.5 V)
• All the logical input has hysteresis voltage for the slow transition.
• Ordering Information

Pinout

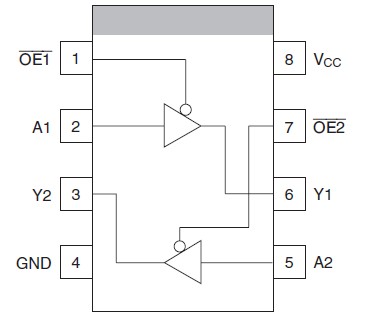

Connection Diagram

Specifications

Item	Symbol	Ratings	Unit	Test Conditions
Supply voltage range	V_CC	0.5 to 7.0	V
Input voltage range ^*1	V_I	0.5 to 7.0	V
Output voltage range ^{*1, 2}	V_O	0.5 to V_CC + 0.5 0.5 to 7.0	V	Output : H or L V_CC : OFF or output : Z
Input clamp current	I_IK	20	mA	V_I < 0
Output clamp current	I_OK	±50	mA	V_O < 0 or V_O > V_CC
Continuous output current	I_O	±25	mA	V_O = 0 to V_CC
Continuous current through V^CC or GND	I_CC or I_GND	±50	mA
Maximum power dissipation at T_a = 25°C (in still air) ^*3	P_T	200	mW
Storage temperature	T_stg	65 to 150	°C

Description

The HD74LV2G125A has dual bus buffer with 3state output in a 8 pin package. Output is disabled when the associated output enable (OE) input is high. To ensure the high impedance state during power up or power down, OE should be connected to VCC through a pull-down resistor; the minimum value of the resistor is determined by the current souring capability of the driver. Low voltage and high-speed operation of HD74LV2G125A is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
