HD74LV2G02A

Features: • The basic gate function is lined up as Renesas uni logic series.• Supplied on emboss taping for high-speed automatic mounting.• Electrical characteristics equivalent to the HD74LV02A Supply voltage range : 1.65 to 5.5 V Operating temperature range : 40 to +85°C•...

product image

HD74LV2G02A Picture
See larger image
SeekIC No. : 004360721 Detail

HD74LV2G02A: Features: • The basic gate function is lined up as Renesas uni logic series.• Supplied on emboss taping for high-speed automatic mounting.• Electrical characteristics equivalent to...

HD74LV2G02A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74LV2G02A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• The basic gate function is lined up as Renesas uni logic series.
• Supplied on emboss taping for high-speed automatic mounting.
• Electrical characteristics equivalent to the HD74LV02A
   Supply voltage range : 1.65 to 5.5 V
   Operating temperature range : 40 to +85°C
• All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
   All outputs VO (Max.) = 5.5 V (@VCC = 0 V)
• Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V)
• All the logical input has hysteresis voltage for the slow transition.
• Ordering Information


Pinout

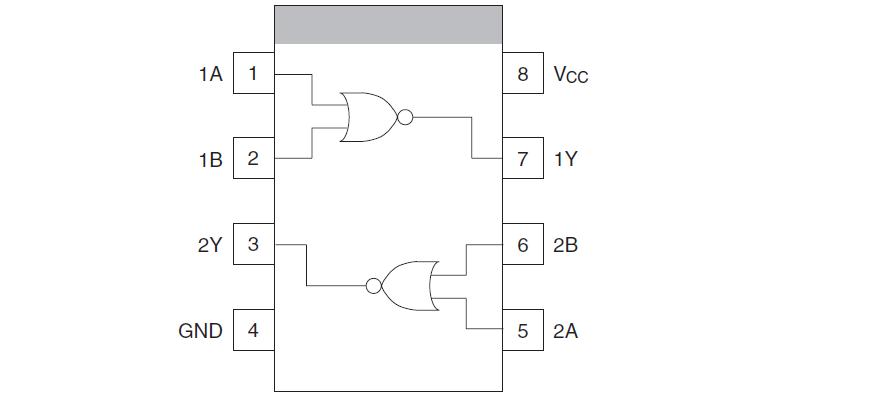

Connection Diagram


Specifications

Item Symbol Ratings Unit
Supply voltage range VCC 0.5 to 7.0 V
Input voltage range *1 VI 0.5 to 7.0 V
Output voltage range *1, 2 VO 0.5 to VCC + 0.5
0.5 to 7.0		 V Output : H or L
VCC : OFF
Input clamp current IIK 20 mA VI < 0
Output clamp current IOK ±50 mA VO < 0 or VO > VCC
Continuous output current IO ±25 mA VO = 0 to VCC
Continuous current through
VCC or GND		 ICC or IGND ±50 mA
Maximum power dissipation
at Ta = 25°C (in still air) *3		 PT 200 mW
Storage temperature Tstg 65 to 150 °C
Notes: The absolute maximum ratings are values, which must not individually be exceeded, and furthermore no two of which may be realized at the same time.
1. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. This value is limited to 5.5 V maximum.
3. The maximum package power dissipation was calculated using a junction temperature of 150°C.


Description

The HD74LV2G02A has dual twoinput NOR gates in an 8 pin package. Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
