HD74LV1G66ACME

Features: The basic gate function is lined up as Renesas uni logic series. Supplied on emboss taping for high-speed automatic mounting. Electrical characteristics equivalent to the HD74LV4066A Supply voltage range : 1.65 to 5.5 V Operating temperature range : 40 to +85°C Control inputs VIH(Max.) ...

product image

HD74LV1G66ACME Picture
See larger image
SeekIC No. : 004360717 Detail

HD74LV1G66ACME: Features: The basic gate function is lined up as Renesas uni logic series. Supplied on emboss taping for high-speed automatic mounting. Electrical characteristics equivalent to the HD74LV4066A Supp...

HD74LV1G66ACME Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74LV1G66ACME
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The basic gate function is lined up as Renesas uni logic series.
Supplied on emboss taping for high-speed automatic mounting.
Electrical characteristics equivalent to the HD74LV4066A
    Supply voltage range : 1.65 to 5.5 V
    Operating temperature range : 40 to +85°C
Control inputs VIH(Max.) = 5.5 V (@VCC= 0 V to 5.5 V)
Control inputs has hysteresis
voltage for the slow transition.
Ordering Information


Pinout

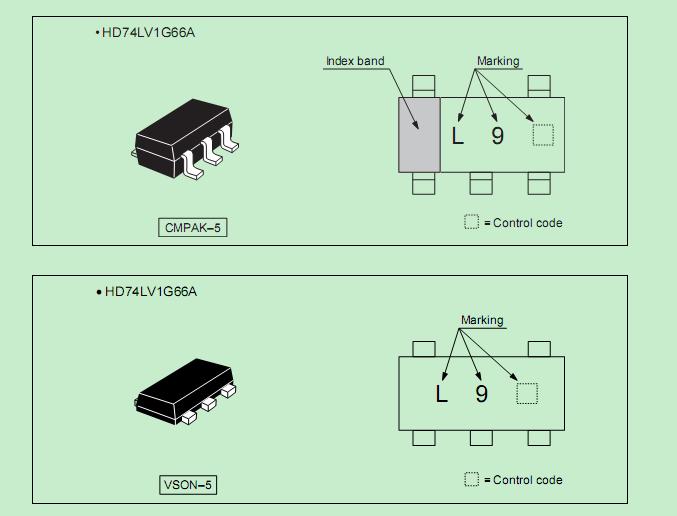

Connection Diagram


Specifications

Item Symbol Ratings Unit TestConditions
Supply voltage range VCC 0.5 to 7.0V V
Input voltage range VI 0.5 to 7.0V V
Output voltage range VO 0.5 toVCC+0.5 V Output : H or L
Input clamp currentI IIK -20 mA VI< 0
Output clamp currentI IOK 50 mA VO< 0 or VO> VCC
Continuous output current IO 25 mA VO= 0 to VCC
Continuous current throug ICC Or IGND 50 mA
Maximum power dissipation
at Ta = 25°C (in still air)

PT 200 mW
Storage temperature Tstg 65 to 150 C



Description

The HD74LV1G66A has an analog switch in a 5 pin package.  Switch section has its enable input control (C).  High-level voltage applied to C turns on the switch section.  Applications of HD74LV1G66A include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog to digital and digital to analog conversion systems.  Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
