HD74LV1G32A

Features: • The basic gate function is lined up as Renesas uni logic series.• Supplied on emboss taping for high-speed automatic mounting.• Electrical characteristics equivalent to the HD74LV32A Supply voltage range : 1.65 to 5.5 V Operating temperature range : 40 to +85°C•...

product image

HD74LV1G32A Picture
See larger image
SeekIC No. : 004360716 Detail

HD74LV1G32A: Features: • The basic gate function is lined up as Renesas uni logic series.• Supplied on emboss taping for high-speed automatic mounting.• Electrical characteristics equivalent to...

HD74LV1G32A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74LV1G32A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•  The basic gate function is lined up as Renesas uni logic series.
•  Supplied on emboss taping for high-speed automatic mounting.
•  Electrical characteristics equivalent to the HD74LV32A
    Supply voltage range : 1.65 to 5.5 V
    Operating temperature range : 40 to +85°C
•  All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
    All outputs VO (Max.) = 5.5 V (@VCC = 0 V)
•  Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V)
•  All the logical input has hysteresis voltage for the slow transition.
•  Ordering Information


Pinout

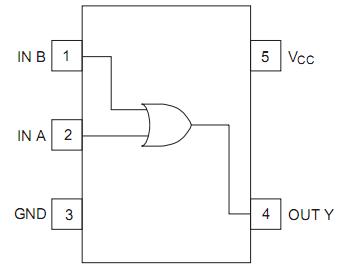

Connection Diagram




Specifications

Item
Symbol
Ratings
Unit
Test Conditions
Supply voltage range
VCC
0.5 to 7.0
V
Input voltage range *1
VI
0.5 to 7.0
V
Output voltage range *1, 2
VO

0.5 to VCC + 0.5

0.5 to 7.0
V

Output : H or L

VCC : OFF

Input clamp current
IIK
20
mA
VI < 0
Output clamp current
IOK
±50
mA
VO < 0 or VO > VCC
Continuous output current
IO
±25
mA
VO = 0 to VCC
Continuous current through
VCC or GND
ICC or IGND
±50
mA
Maximum power dissipation
at Ta = 25°C (in still air) *3
PT
200
mW
Storage temperature
Tstg
65 to 150
°C



Description

The HD74LV1G32A has twoinput OR gate in a 5 pin package.  Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
