HD74LV05A

Features: ` VCC = 2.0 V to 5.5 V operation` All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)` All outputs VO (Max.) = 5.5 V (@VCC = 0 V)` Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25)` Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25)` Output current ±6 mA (@VCC = 3.0 V t...

product image

HD74LV05A Picture
See larger image
SeekIC No. : 004360708 Detail

HD74LV05A: Features: ` VCC = 2.0 V to 5.5 V operation` All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)` All outputs VO (Max.) = 5.5 V (@VCC = 0 V)` Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = ...

HD74LV05A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74LV05A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  VCC = 2.0 V to 5.5 V operation
`  All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V)
`  All outputs VO (Max.) = 5.5 V (@VCC = 0 V)
`  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25)
`  Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25)
`  Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V)


Pinout

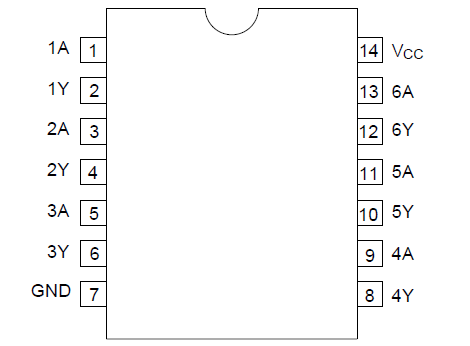

Connection Diagram


Specifications

Item
Symbol
Ratings
Value
Conditions
Supply voltage range
VCC
0.5 to 7.0
V
V
Input voltage range*1
VI
0.5 to 7.0
V
V
Output voltage range*1, 2
VO
0.5 to VCC + 0.5
V
Output: H or L
0.5 to 7.0
VCC: OFF
Input clamp current
IIK
20
mA
VI < 0
Output clamp current
IOK
50
mA
VO < 0
Continuous output current
IO
25
mA
VO = 0 to VCC
Continuous current through
VCC or GND
ICC or IGND
±50
mA
Maximum power dissipation
at Ta = 25(in still air)*3
PT
785
mW
SOP
500
TSSOP
Storage temperature
Tstg
65 to 150

Notes: The absolute maximum ratings are values which must not individually be exceeded, and furthermore, no two
           of which may be realized at the same time.

1. The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. This value is limited to 5.5 V maximum.
3. The maximum package power dissipation was calculated using a junction temperature of 150.




Description

The HD74LV05A has six inverters with open drain outputs in a 14-pin package. Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life.
