Features: ` LSTTL Output Logic Level Compatibility as well as CMOS Output Compatibility` High Speed Operation: tpd (Clock to Q) = 15 ns typ (CL = 50 pF)` High Output Current: Fanout of 15 LSTTL Loads` Wide Operating Voltage: VCC = 4.5 to 5.5 V` Low Input Current: 1 A max` Low Quiescent Supply Curr...
HD74HCT534: Features: ` LSTTL Output Logic Level Compatibility as well as CMOS Output Compatibility` High Speed Operation: tpd (Clock to Q) = 15 ns typ (CL = 50 pF)` High Output Current: Fanout of 15 LSTTL Load...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item |
Symbol |
Rating |
Unit |
Supply voltage range |
VCC |
0.5 to +7.0 |
V |
Input voltage |
VIN |
0.5 to VCC + 0.5 |
V |
Output voltage |
VOUT |
0.5 to VCC + 0.5 |
V |
DC current drain per pin |
IOUT |
±35 |
mA |
DC current drain per VCC, GND |
ICC, IGND |
±75 |
mA |
DC input diode current |
IIK |
±20 |
mA |
DC output diode current |
IOK |
±20 |
mA |
Power dissipation per package |
PT |
500 |
mW |
Storage temperature |
Tstg |
65 to +150 |
°C |

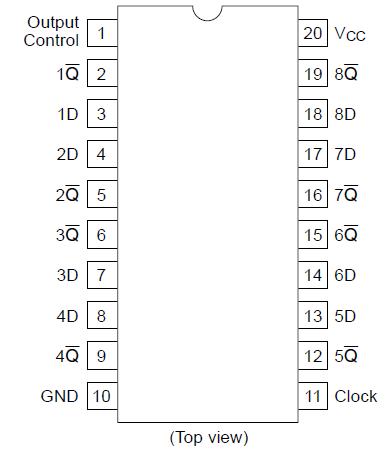

These HD74HCT374 and HD74HCT534 devices are positive edge triggered flip-flops. The difference between HD74HCT374 and HD74HCT534 is only that the former is a true outputs and the latter is a false outputs. Data at the D inputs, meeting the setup and hold time requirements, are transferred to the Q outputs on positive going transitions of the clock (CK) input. When a high logic level is applied to the output control (OC) input, all outputs go to a high impedance state, regardless of what signals are present at the other inputs and the state of the storage elements.
