HD74HC245

Features: · High Speed Operation: tpd = 8 ns typ (CL = 50 pF)· High Output Current: Fanout of 15 LSTTL Loads· Wide Operating Voltage: VCC = 2 to 6 V· Low Input Current: 1 µA max· Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)PinoutSpecifications Item Symbol Ra...

product image

HD74HC245 Picture
See larger image
SeekIC No. : 004360647 Detail

HD74HC245: Features: · High Speed Operation: tpd = 8 ns typ (CL = 50 pF)· High Output Current: Fanout of 15 LSTTL Loads· Wide Operating Voltage: VCC = 2 to 6 V· Low Input Current: 1 µA max· Low Quiescent...

HD74HC245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74HC245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  High Speed Operation: tpd = 8 ns typ (CL = 50 pF)
·  High Output Current: Fanout of 15 LSTTL Loads
·  Wide Operating Voltage: VCC = 2 to 6 V
·  Low Input Current: 1 µA max
·  Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)


Pinout

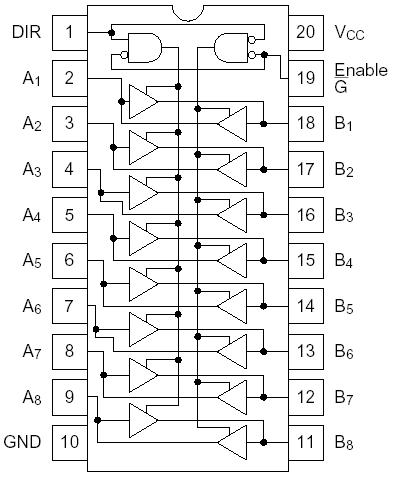

Connection Diagram


Specifications

Item Symbol Rating Unit
Supply voltage range VCC 0.5 to +7.0 V
Input voltage VIN 0.5 to VCC + 0.5 V
Output voltage VOUT 0.5 to VCC + 0.5 V
DC current drain per pin IOUT ±35 mA
DC current drain per VCC, GND ICC, IGND ±75 mA
DC input diode current IIK ±20 mA
DC output diode current IOK ±20 mA
Power dissipation per package PT 500 mW
Storage temperature Tstg 65 to +150 °C



Description

Each HD74HC245 has an active low enable input G and a direction control input, DIR. When DIR is high, data flows from the A inputs to the B outputs. When DIR is low, data flows from the B inputs to the A outputs. The HD74HC245 transfers true data from one bus to the other. This device does not have schmitt trigger inputs.
