HD74HC131

Features: · High Speed Operation: tpd (CLK to Y) = 20 ns typ (CL = 50 pF)· High Output Current: Fanout of 10 LSTTL Loads· Wide Operating Voltage: VCC = 2 V to 6 V· Low Input Current: 1 µA max· Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)PinoutDescriptionThe HD74HC1...

product image

HD74HC131 Picture
See larger image
SeekIC No. : 004360623 Detail

HD74HC131: Features: · High Speed Operation: tpd (CLK to Y) = 20 ns typ (CL = 50 pF)· High Output Current: Fanout of 10 LSTTL Loads· Wide Operating Voltage: VCC = 2 V to 6 V· Low Input Current: 1 µA max·...

HD74HC131 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74HC131
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  High Speed Operation: tpd (CLK to Y) = 20 ns typ (CL = 50 pF)
·  High Output Current: Fanout of 10 LSTTL Loads
·  Wide Operating Voltage: VCC = 2 V to 6 V
·  Low Input Current: 1 µA max
·  Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C)


Pinout

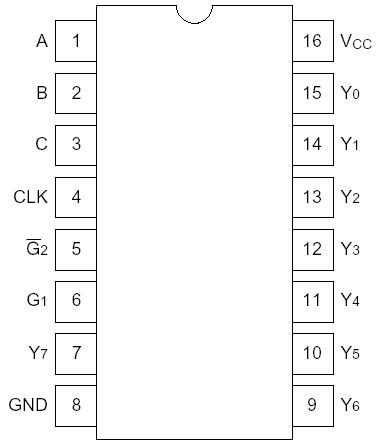

Connection Diagram


Description

The HD74HC131 is 3-to-8 linedecoder. It has Address select inputs (A,B,C) and D type register.Address select data store to D type registers, during the positive going transition of the clock pulse. Output control (G 1, G2) are independent of select input and CLK input, and when G1 is low or G2 = High, all outputs is high.
