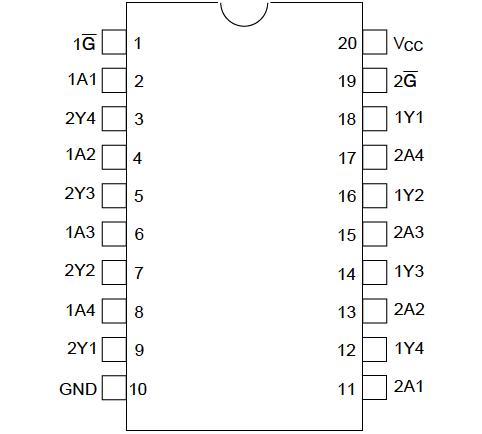

Features: ` Input/Output are at high impedance state when power supply is off.` Built in input pull up circuit can make input pins be open, when not used.` Input is TTL level.` Wide operating temperature range Ta = 40 to +85°CPinoutSpecifications Item Symbol Rating Unit Supply v...
HD74BC540A: Features: ` Input/Output are at high impedance state when power supply is off.` Built in input pull up circuit can make input pins be open, when not used.` Input is TTL level.` Wide operating temper...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item |
Symbol |
Rating |
Unit |
Supply voltage |
VCC |
0.5 to +7.0 |
V |
Input diode current |
IIK |
±30 |
mA |
Input voltage |
VIN |
0.5 to +7.5 |
V |
Output voltage |
VOUT |
0.5 to +7.5 |
V |
Off state output voltage |
VOUT(off) |
0.5 to +5.5 |
V |
Storage temperature |
Tstg |
65 to +150 |
°C |
The HD74BC540A provides high drivability and operation equal to or better than high speed bipolar standard logic IC by using Bi-CMOS process. The HD74BC540A features low power dissipation that is about 1/5 of high speed bipolar logic IC, when the frequency is 10 MHz. The device has eight inverter drivers with three state outputs in a 20 pin package. When G1 and G2 is low level, this drivers set up output is enable.
