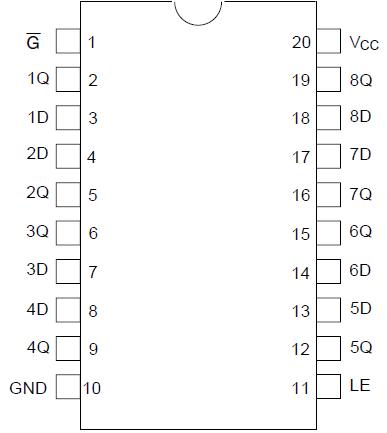

Features: ` Input/Output are at high impedance state when power supply is off.` Built in input pull up circuit can make input pins be open, when not used.` TTL level input` Wide operating temperature range input pins Ta = 40 to + 85°CPinoutSpecifications Item Symbol Rating Unit ...
HD74BC373A: Features: ` Input/Output are at high impedance state when power supply is off.` Built in input pull up circuit can make input pins be open, when not used.` TTL level input` Wide operating temperatur...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item |
Symbol |
Rating |
Unit |
Supply voltage |
VCC |
0.5 to +7.0 |
V |
Input diode current |
IIK |
±30 |
mA |
Input voltage |
VIN |
0.5 to +7.5 |
V |
Output voltage |
VOUT |
0.5 to +7.5 |
V |
Off state output voltage |
VOUT(off) |
0.5 to +5.5 |
V |
Storage temperature |
Tstg |
65 to +150 |
°C |
The HD74BC373A provides high drivability and operation equal to or better than high speed bipolar standard logic IC by using Bi-CMOS process. The HD74BC373A features low power dissipation that is about 1/5 of high speed bipolar logic IC, when the frequency is 10 MHz. The device has eight D type latches with three state outputs in a 20 pin package. When the latch enable input is high, the Q outputs will follow the D inputs. When the latch enable goes low, data at the D inputs will be retained at the outputs until latch enable returns high again. When a high logic level is applied to the output control input, all outputs go to a high impedance state, regardless of what signals are present at the other inputs and the state of the storage elements.
