HD74ALVCH16830

Features: · VCC = 2.3 V to 3.6 V· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)· Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)· High output current ±24 mA (@VCC = 3.0 V)· Bus hold on data inputs eliminates the need for external pullup / pulldown resistorsPinoutSpecif...

product image

HD74ALVCH16830 Picture
See larger image
SeekIC No. : 004360574 Detail

HD74ALVCH16830: Features: · VCC = 2.3 V to 3.6 V· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)· Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)· High output current ±24 mA (@VCC = 3.0 ...

HD74ALVCH16830 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD74ALVCH16830
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  VCC = 2.3 V to 3.6 V
·  Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
·  Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
·  High output current ±24 mA (@VCC = 3.0 V)
·  Bus hold on data inputs eliminates the need for external pullup / pulldown resistors


Pinout

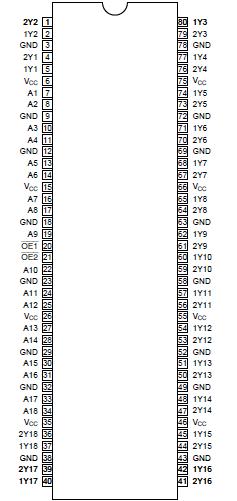

Connection Diagram


Specifications

Item
Symbol
Ratings
Unit
Conditions
Supply voltage
VCC
0.5 to 4.6
V
Input voltage *1
VI
0.5 to 4.6
V
Output voltage *1,2
VO
0.5 to VCC +0.5
V
Input clamp current
IIK
-50
mA
VI < 0
Output clamp current
IOK
±50
mA
VO<0 or VO>VCC
Continuous output current
IO
±50
mA
VO = 0 to VCC
VCC, GND current / pin
ICC or IGND
±100
mA

Maximum power dissipation at Ta = 55°C (in still air)*3
PT
1
W
TVSOP
Storage temperature
Tstg
65 to 150
°C

Notes: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
1. The input and output negative voltage ratings may be exceeded if the input and output clamp current ratings are observed.
2. This value is limited to 4.6 V maximum.
3. The maximum package power dissipation is calculated using a junction temperature of 150°C and a board trace length of 750 mils.




Description

This HD74ALVCH16830 1-bit to 2-bit address driver is designed for 2.3 V to 3.6 V VCC operation. To ensure the high impedance state during power up or power down, the output ebable (OE) input should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current sinking capability of the driver. Active HD74ALVCH16830 bus hold circuitry is provided to hold unused or floating inputs at a valid logic level.
