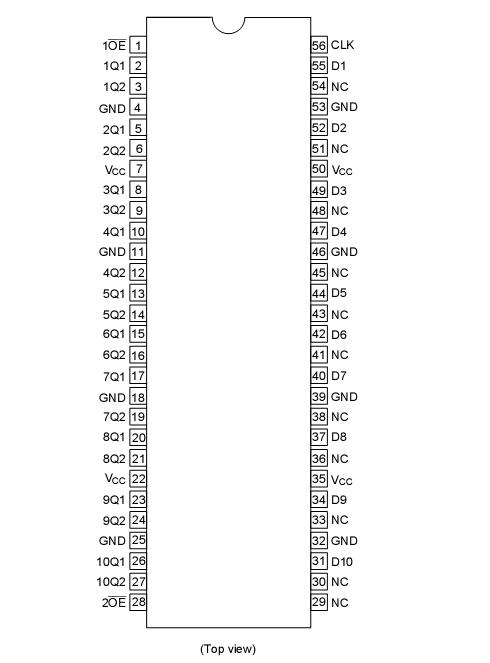

Features: * VCC = 2.3 V to 3.6 V* Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25 C)* Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25 C)* High output current 24 mA (@VCC = 3.0 V)* Bus hold on data inputs eliminates the need for external pullup / pulldown resistorsPinoutSpecif...
HD74ALVCH16820: Features: * VCC = 2.3 V to 3.6 V* Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25 C)* Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25 C)* High output current 24 mA (@VCC = 3.0 ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item |
Symbol |
Ratings |
Unit |
Test Conditions |
Supply voltage |
VCC |
0.5 to 4.6 |
V |
|
|
VI |
0.5 to 4.6 |
V |
|
|
VO |
0.5 to VCC +0.5 |
V |
|
Input clamp current |
IIK |
50 |
mA |
VI < 0 |
Output clamp current |
IOK |
50 |
mA |
VO < 0 or VO > VCC |
Continuous output current |
IO |
50 |
mA |
VO = 0 to VCC |
VCC, GND current / pin |
ICC or IGND |
100 |
mA |
|
Maximum power dissipation |
PT |
1 |
W |
TSSOP |
Storage temperature |
Tstg |
65 to 150 |
C |
|
The flip flops of the HD74ALVCH16820 are edge triggered D-type flip flops. On the positive transition of the clock (CLK) input, the device provides true data at the Q outputs. A buffered output enable (OE) input can be used to place the ten outputs in either a normal logic state (high or low logic level) or a high impedance state. In the high impedance state, the outputs neither load nor drive the bus lines significantly. The high impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components. OE) input does not affect the internal operation of the flip flops. Old data can be retained or new data can be entered while the outputs are in the high impedance state. Active HD74ALVCH16820 bus hold circuitry is provided to hold unused or floating data inputs at a valid logic level.
