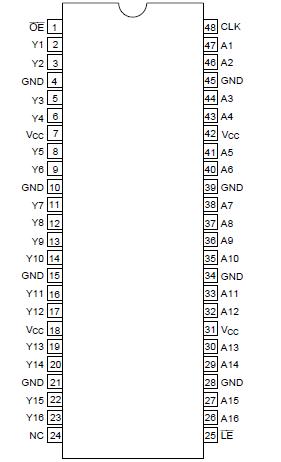

Features: · VCC = 2.3 V to 3.6 V· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)· Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)· High output current ±24 mA (@VCC = 3.0 V)· Bus hold on data inputs eliminates the need for external pullup / pulldown resistorsPinoutSpecif...
HD74ALVCH16334: Features: · VCC = 2.3 V to 3.6 V· Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)· Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)· High output current ±24 mA (@VCC = 3.0 ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item |
Symbol |
Ratings |
Unit |
Conditions |
Supply voltage |
VCC |
0.5 to 4.6 |
V |
|
Input voltage *1 |
VI |
0.5 to 4.6 |
V |
|
Output voltage *1, 2 |
VO |
0.5 to VCC +0.5 |
V |
Output : H or L |
Input clamp current |
IIK |
-50 |
mA |
VI<0 |
Output clamp current |
IOK |
±50 |
mA |
VO<0 or VO >VCC |
Continuous output current |
IO |
±50 |
mA |
VO = 0 to VCC |
VCC, GND current / pin |
ICC or IGND |
±100 |
mA |
|
Maximum power dissipation at Ta = 55°C (in still air)*3 |
PT |
0.85 |
mW |
TSSOP |
Storage temperature |
Tstg |
65 to 150 |
°C |
Notes: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
1. The input and output negative voltage ratings may be exceeded if the input and output clamp current ratings are observed.
2. This value is limited to 4.6 V maximum.
3. The maximum package power dissipation is calculated using a junction temperature of 150°C and a board trace length of 750 mils.
This HD74ALVCH16334 is a 16-bit universal bus driver is designed for 2.3 V to 3.6 V VCC operation.
Data flow from A to Y is controlled by the output enable (OE) input. The HD74ALVCH16334 operates in the transparent mode when the latch enable (LE) input is low. When LE is high, the A data is latched if the clock (CLK) input is held at a high or low logic level. If LE is high, the A data is stored in the latch/flip flop on the low to high transition of CLK. When OE is high, the outputs are in the high impedance state.
To ensure the high impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current sinking capability of the driver. Active HD74ALVCH16334 bus hold circuitry is provided to hold unused or floating inputs at a valid logic level
